PV01V00074F1

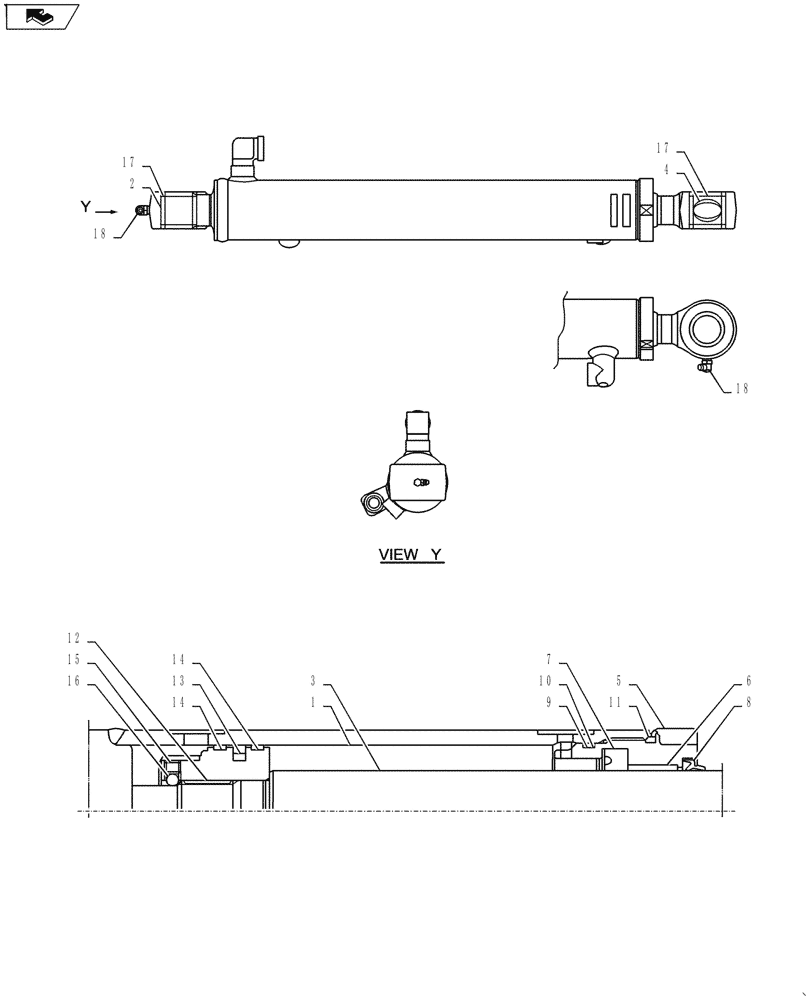

HYDRAULIC CYLINDER
Standard Cylinder Assembly, W/O Head Cover, Incl 1 - 18
1шт.
1
NSS
NOT SOLD SEPARAT
Tube Assy
1шт.
2
PV12B01185D2
BUSHING
1шт.
3
NSS
NOT SOLD SEPARAT
Rod, Piston
1шт.
4
PB01V00003S002
BUSHING
1шт.
5
PV01V00074S005
CYLINDER HEAD
1шт.
6
PV01V00045S019
BUSHING
1шт.
7
PW01V00012S005
RING,37mm ID x 55mm OD x 11mm Thk
1шт.
8
PV01V00023S006
WIPER,33mm ID x 47mm OD x 8mm Thk
Ring
1шт.
9
ZD12G05500
O-RING,3.1mm Thk x 54.4mm ID, 90 Duro
1шт.
10
PV01V00045S010
BACK-UP RING
1шт.
11
ZD12G06000
O-RING,59.40mm ID x 65.60mm OD x 3.10mm
1шт.
12
PV01V00045S012
PISTON
1шт.
13
2438U988S16
SEAL
Ring
1шт.
14
PV01V00063S014
RING
2шт.
15
2438U988S18
SET SCREW
1шт.
16
2438U988S19
BALL
1шт.
17
PN54D01001D2
SEAL,35mm ID x 45mm OD x 4mm Thk
4шт.
18
PR01V00029S023
LUBE NIPPLE
2шт.
PV01V00074R100
REPAIR KIT
Consists Of Item: 1(1), 2(1), 17(2)
1шт.
PV01V00074R200
REPAIR KIT
Consists Of Item: 3(1), 4(1), 17(2)
1шт.
PV01V00045R300
REPAIR KIT
Consists Of Item: 7(1), 8(1), 9(1), 10(1), 11(1), 14(2)
1шт.
