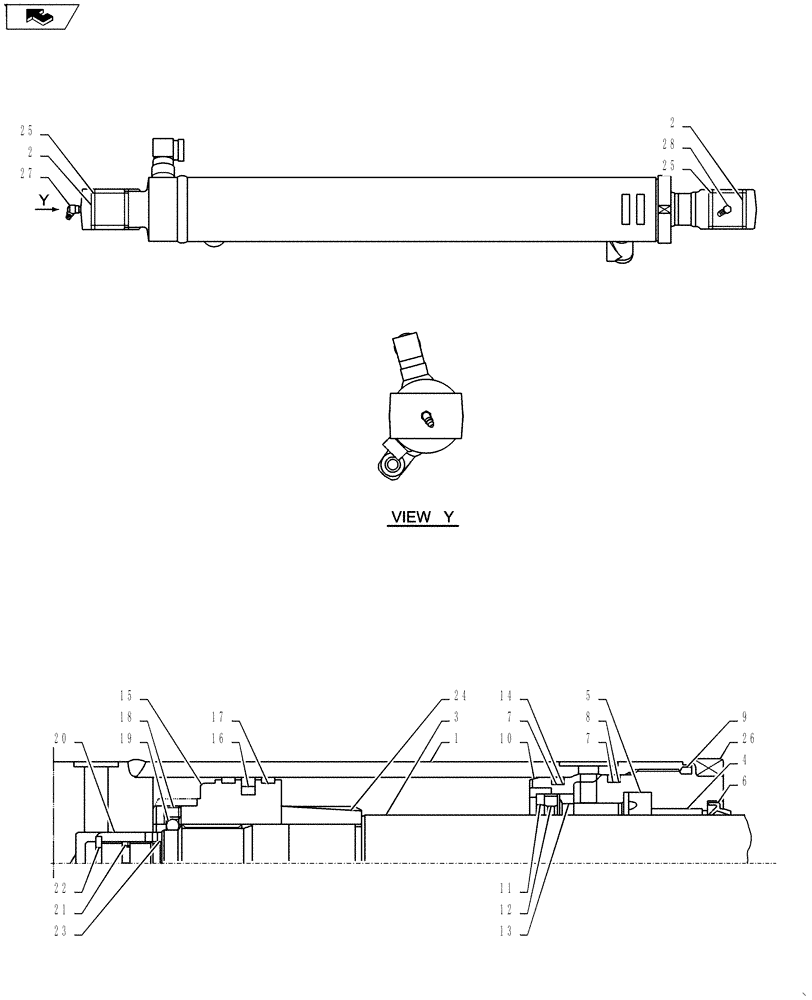

Запчасти Case CX27B ASN (35.730.06) - CYLINDER, ASSY (ARM) (35) - HYDRAULIC SYSTEMS

.

PV01V00062F2

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 502mm Stroke

Cylinder Assembly (Arm) Incl 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PV12B01186D1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod

1шт.

4

PM01V00060S031

BUSHING

1шт.

5

2438U477S6

RING

U

1шт.

6

PH01V00004S006

WIPER

Ring

1шт.

7

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

2шт.

8

PR01V00019S008

BACK-UP RING

1шт.

9

ZD12G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

10

PV01V00061S011

HOLDER

1шт.

11

PM01V00059S012

SPACER

1шт.

12

PM01V00059S013

SEAL

1шт.

13

PM01V00067S014

COLLAR

1шт.

14

PV01V00021S008

BACK-UP RING

1шт.

15

PV01V00051S016

PISTON

1шт.

16

2438U854S15

RING

Seal

1шт.

17

PV01V00061S018

RING

2шт.

18

2438U1057S16

SET SCREW

1шт.

19

2436U946S11

BALL

1шт.

20

PV01V00024S015

BEARING

1шт.

21

LE01V00004S025

SEAL

Cushion

1шт.

22

LE01V00004S026

STOP

2шт.

23

PW01V00014S020

SNAP RING

Retaining

1шт.

24

PM01V00059S025

BEARING

1шт.

25

PR01V00001S024

GASKET

Dust

4шт.

26

PV01V00067S004

CYLINDER HEAD

1шт.

27

PR01V00027S023

LUBE NIPPLE

1шт.

28

PR01V00029S023

LUBE NIPPLE

1шт.

PV01V00062R100

REPAIR KIT

Consists Of Item: 1(1), 2(1), 25(2)

1шт.

PV01V00051R200

REPAIR KIT

Consists Of Item: 2(1), 3(1), 25(2)

1шт.

PV01V00051R300

REPAIR KIT

Consists Of Item: 5(1), 6(1), 7(1), 8(1), 9(1), 14(1), 16(1), 17(2)

1шт.
