(35.730.05) - CYLINDER INSTALL (ARM)

Запчасти Case CX27B ASN (35.730.05) - CYLINDER INSTALL (ARM) (35) - HYDRAULIC SYSTEMS

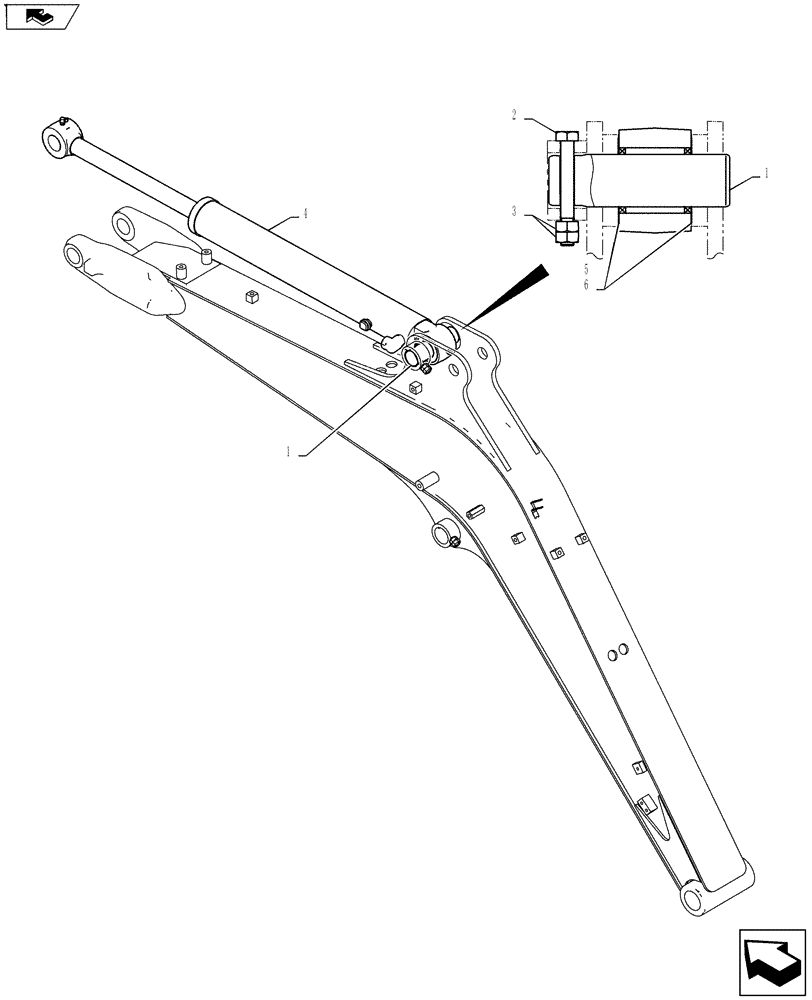

Схема запчастей Case CX27B ASN - (35.730.05) - CYLINDER INSTALL (ARM) (35) - HYDRAULIC SYSTEMS
1
5
2
home
1
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Cylinder Install (Arm) PV02B00253F1

1шт.

1

PM02B01321P1

PIN,40mm OD x 138mm L

1шт.

2

HS18C10080G3

BOLT

1шт.

3

ZN18C10008

NUT

2шт.

4

PV01V00062F2

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 502mm Stroke

Arm

1шт.

5

PR02B01123D1

SHIM,0.9mm Thk

1шт.

6

PR02B01107P1

SHIM,0.5mm Thk

2шт.
