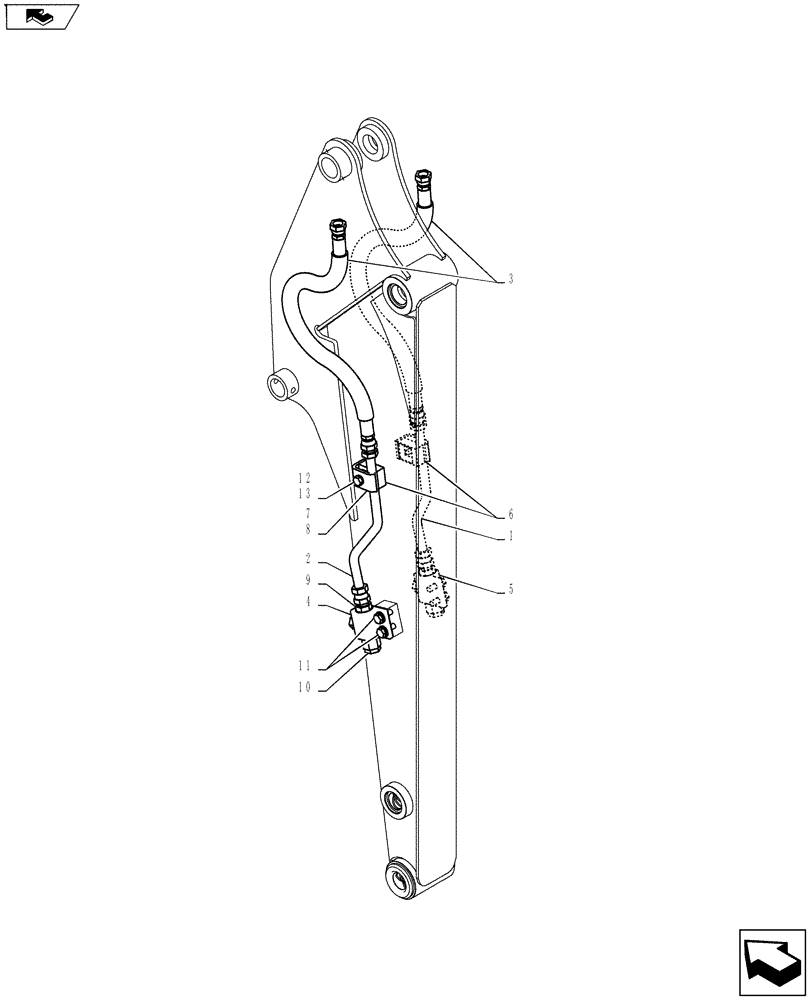

Запчасти Case CX27B ASN (35.702.17) - HYD LINES, ARM 1.37M (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

.

Hyd Lines, Arm 1.37M (Nibbler & Breaker) PV43H00025F1

1шт.

1

PM43H01019P1

TUBE

, Serial Range: PV13-33453-PV13-34057

1шт.

1

PM43H01021P1

TUBE

, Start Serial: PV13-34058

1шт.

2

PM43H01020P1

TUBE

, Serial Range: PV13-33453-PV13-34057

1шт.

2

PM43H01022P1

TUBE

, Start Serial: PV13-34058

1шт.

3

HX55L08070DY

HOSE,12.7mm ID x 700mm L

2шт.

4

YN25V00011F1

VALVE

Stop

1шт.

5

YN25V00012F1

VALVE

Stop

1шт.

6

PV42H01133P2

CLAMP

2шт.

7

PV42H01134P1

CLAMP

2шт.

8

PV42H01137P1

SPACER

2шт.

9

HH25S08008G1

HYD CONNECTOR

2шт.

10

ZE72X08000

PLUG

2шт.

11

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

4шт.

12

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

2шт.

13

ZW26X10000

LOCK WASHER

2шт.
