(35.702.15) - HYD LINES, ARM 1.12M (NIBBLER AND BREAKER)

Запчасти Case CX27B ASN (35.702.15) - HYD LINES, ARM 1.12M (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

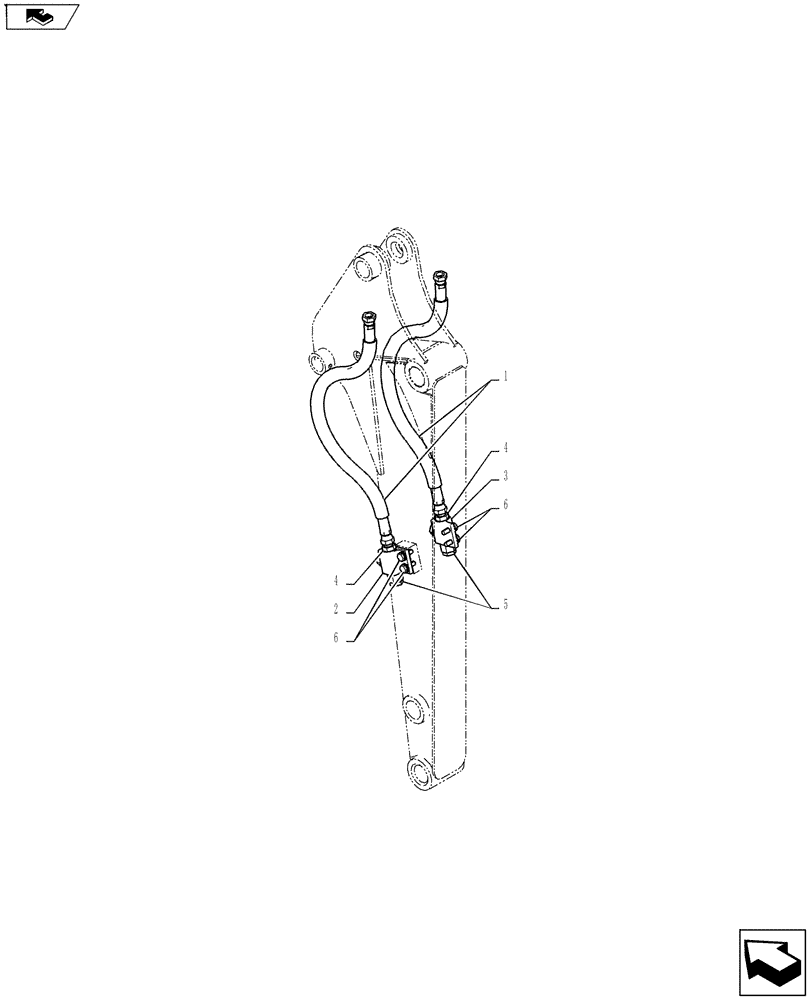

Схема запчастей Case CX27B ASN - (35.702.15) - HYD LINES, ARM 1.12M (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS
5
6
1
4
6
home
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Hyd.Lines, Arm 1.12m (Nibbler and Breaker) PV43H00022F1

1шт.

1

HX55L08078DY

HYDRAULIC HOSE

, Serial Range: PV13-33453-PV13-34053

2шт.

1

HX55L08076DY

HOSE ASSY.

, Start Serial: PV13-34054

2шт.

2

YN25V00011F1

VALVE

Stop

1шт.

3

YN25V00012F1

VALVE

Stop

1шт.

4

HH25S08008G1

HYD CONNECTOR

2шт.

5

ZE72X08000

PLUG

2шт.

6

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

4шт.

Выбрано товаров: 8
