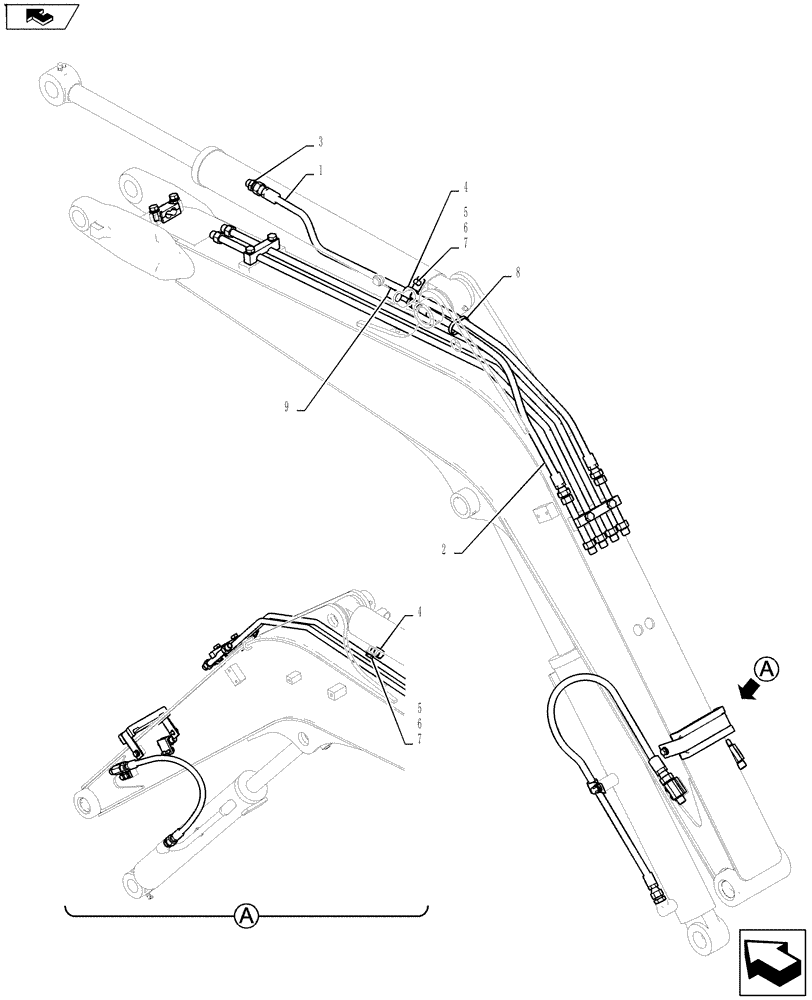

Запчасти Case CX27B ASN (35.702.12) - HYD LINES, CYLINDER (ARM) (35) - HYDRAULIC SYSTEMS

.

Hyd Lines, Cylinder (Arm) PV42H00042F1

1шт.

1

PW42H01104DC

HOSE,9.5mm ID x 1160mm L

1шт.

2

PX42H01170D3

HYDRAULIC HOSE

, Serial Range: PV13-33453-PV13-33855

1шт.

2

PX42H01263D2

HOSE

, Start Serial: PV13-33856

1шт.

3

HH25S06006G1

HYD CONNECTOR

1шт.

4

ZC46X19011

CLIP

1шт.

5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

ZW16X10000

WASHER

1шт.

8

PY01P01043D8

CABLE TIE,102mm L

1шт.

9

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.
