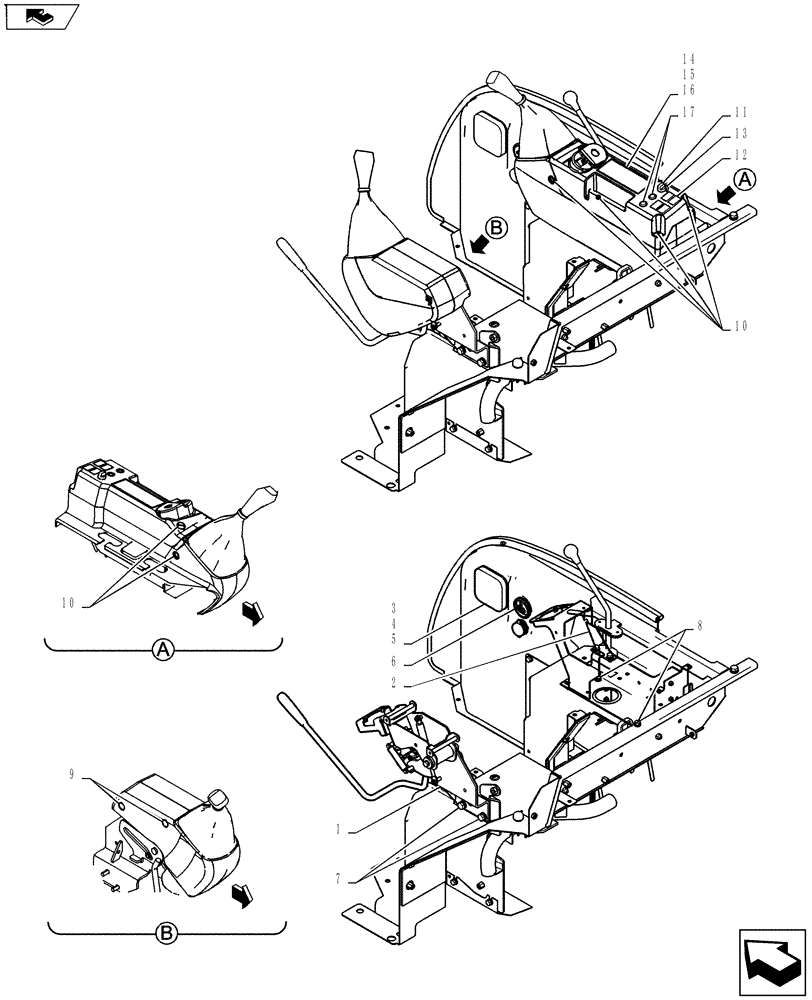

Запчасти Case CX27B ASN (35.702.02) - CONTROLS, OPERATORS (35) - HYDRAULIC SYSTEMS

.

Controls, Operators PW03M00092F1

1шт.

1

PW03M00093F1

1шт.

2

PW03M01448P3

BOX

1шт.

3

YT17M01034P2

HOLDER

1шт.

4

YT02C01296P1

RIVET

2шт.

5

ZW16X06000

WASHER

2шт.

6

YT58S00006P1

HOURMETER

Hour

1шт.

7

ZM22C10030

BOLT

Sems

1шт.

8

ZM22C08020

BOLT

Sems

4шт.

9

PW03M01319P1

BOLT

Sems

2шт.

10

PW03M01717D1

BOLT,Torx, Truss HD, M5 x 0.8 x 16mm

Sems

6шт.

11

PV24E01001P2

SWITCH

Assy.

1шт.

12

2414T4530

CAP

4шт.

13

PW17M01020P1

LABEL

Light Switch (On/Off)

1шт.

14

PH59S00005F1

GAUGE ASSY.

Cluster

1шт.

15

ZS32T40016

SCREW

Cross Tapping

4шт.

16

ZW16K04000

WASHER

4шт.

17

PW17M01021P1

CAP

2шт.
