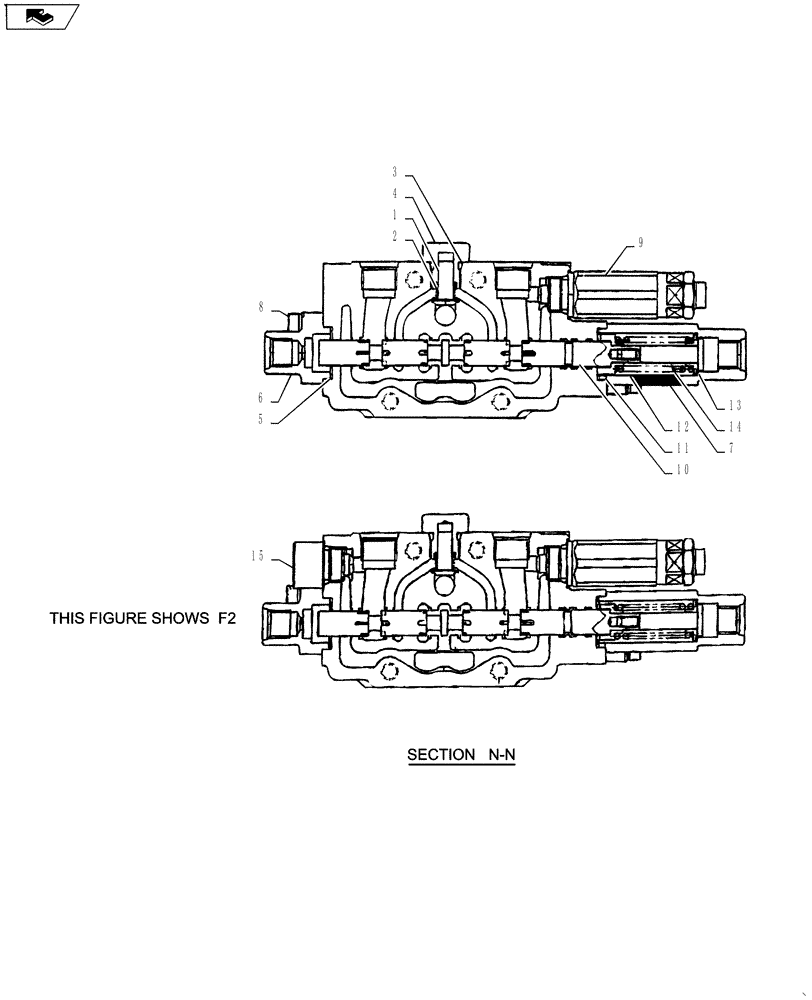

Запчасти Case CX27B ASN (35.359.10) - VALVE INSTALL (35) - HYDRAULIC SYSTEMS

.

Valve Install PM64H00051F1

1шт.

.

PM30V00049F2

VALVE

Incl 1 - 15

1шт.

1

PH30V00003S006

POPPET

1шт.

2

PH30V00003S007

SPRING

1шт.

3

ZD12P01100

O-RING

1шт.

4

PH30V00003S009

PLUG

1шт.

5

PW30V01008S011

O-RING

2шт.

6

PM30V00021S012

COVER

1шт.

7

PM30V00021S013

COVER

1шт.

8

PM30V00021S014

SCREW

Cap

4шт.

9

PM22V00005F3

VALVE PRESSURE RELIE

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Spring

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Spool

1шт.

15

PH50T00001F1

PLUG

Assy.

1шт.

PM30V00049R100

REPAIR KIT

Consists Of Item; 10(1), 11(1), 12(1), 13(1), 14(1)

1шт.
