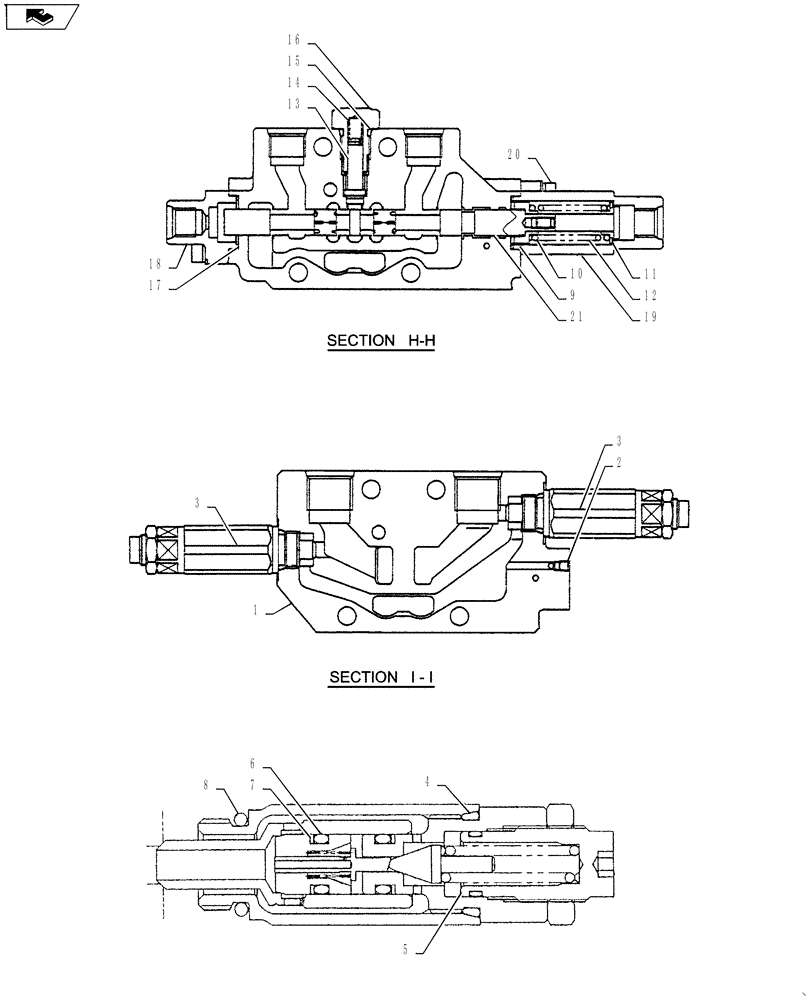

Запчасти Case CX27B ASN (35.359.08) - VALVE INSTALL (35) - HYDRAULIC SYSTEMS

.

Valve Install PM64H00051F1

1шт.

.

PM30V00045F1

VALVE

Incl 1 - 3

1шт.

1

PX30V00055S001

BODY

1шт.

2

2436U1317S22

PLUG

1шт.

3

PX22V00004F2

VALVE PRESSURE RELIE

Incl 4 - 8

2шт.

4

ZD12P01500

O-RING

1шт.

5

2436R612S13

O-RING

1шт.

6

PH22V00003S013

O-RING

2шт.

7

PH22V00003S014

BACK-UP RING

2шт.

8

ZD12P01400

O-RING

1шт.

.

PM30V00044F2

VALVE

Incl 9 - 21

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Spool

1шт.

13

PW30V01009S002

POPPET

1шт.

14

PH30V00014S013

SPRING

1шт.

15

ZD12P01100

O-RING

1шт.

16

PW30V01009S005

PLUG

1шт.

17

PW30V01008S011

O-RING

2шт.

18

PM30V00021S012

COVER

1шт.

19

PM30V00021S013

COVER

1шт.

20

PM30V00021S014

SCREW

Cap

4шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

PM30V00044R200

REPAIR KIT

Repair Kit, Consists Of Item; 9(1), 10(1), 11(1), 12(1), 21(1)

1шт.
