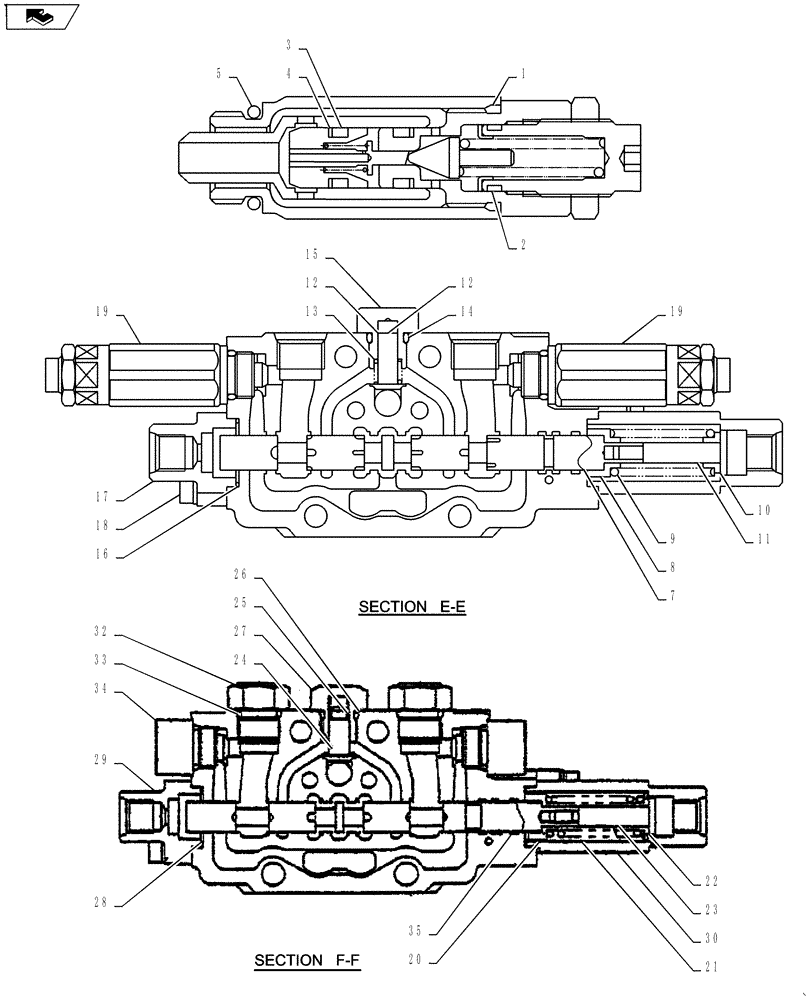

Запчасти Case CX27B ASN (35.359.06) - VALVE INSTALL (35) - HYDRAULIC SYSTEMS

.

Valve Install PM64H00051F1

1шт.

.

PR22V00004F7

VALVE PRESSURE RELIE

Incl 1 - 5

1шт.

1

ZD12P01500

O-RING

1шт.

2

2436R612S13

O-RING

1шт.

3

PH22V00003S013

O-RING

2шт.

4

PH22V00003S014

BACK-UP RING

2шт.

5

ZD12P01400

O-RING

1шт.

.

PM30V00054F2

VALVE

Incl 6 - 19

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Seat

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

1шт.

11

PH30V00003S006

POPPET

1шт.

12

PH30V00003S007

SPRING

1шт.

13

ZD12P01100

O-RING

1шт.

14

PH30V00003S009

PLUG

1шт.

15

PW30V01008S011

O-RING

2шт.

16

PM30V00021S012

COVER

1шт.

17

PM30V00021S013

COVER

1шт.

18

PM30V00021S014

SCREW

Cap

4шт.

19

PM22V00005F3

VALVE PRESSURE RELIE

2шт.

.

PX30V00052F2

VALVE SECTION

Incl 20 - 34

1шт.

20

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

21

NSS

NOT SOLD SEPARAT

Spring

1шт.

22

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

23

PF30V00005S009

POPPET

1шт.

24

PF30V00005S010

SPRING

1шт.

25

ZD12P01100

O-RING

1шт.

26

PF30V00005S012

PLUG

1шт.

27

PW30V01008S011

O-RING

2шт.

28

PM30V00021S012

COVER

1шт.

29

PM30V00021S013

COVER

1шт.

30

PM30V00021S014

SCREW

Cap

4шт.

31

PR30V00007S014

PLUG

2шт.

32

ZD12P01400

O-RING

2шт.

33

PH50T00001F1

PLUG

Assy.

2шт.

34

NSS

NOT SOLD SEPARAT

Spool

1шт.

PM30V00054R100

REPAIR KIT

Consists Of Item: 5(1), 6(1), 7(1), 8(1), 9(1)

1шт.

PX30V00052R200

REPAIR KIT

Consists Of Item: 6(1), 7(1), 8(1), 9(1)

1шт.
