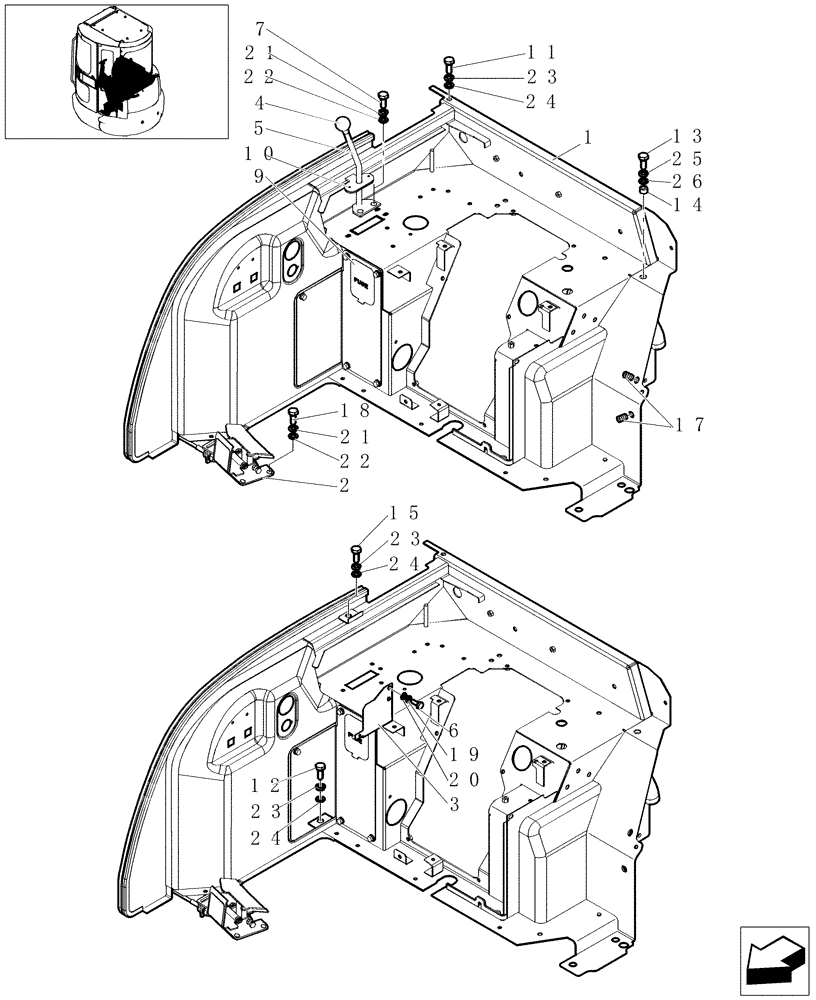

Запчасти Case CX27B (1.070[03]) - CONTROL OPERATORS - CAB (01) - Section 1

1

87546561

STAND

1шт.

Assy See Page 1.070 05

1шт.

2

72171868

PEDAL

1шт.

Assy See Page 1.070 07

1шт.

3

87546563

COVER

1шт.

4

72272315

HANDLE GRIP

1шт.

5

87546396

LEVER

1шт.

6

10902034

SCREW

TE M6x12

2шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

9

72281772

GROMMET

1шт.

10

72281773

GROMMET

1шт.

11

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

12

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

1шт.

13

15215734

HEX SOC SCREW,M12 x 50mm, Cl 10.9

TE M12x50

1шт.

14

72281776

PLUG

1шт.

15

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

1шт.

17

72951011

CAP

2шт.

18

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

19

10571579

LOCK WASHER,M6

2шт.

20

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

21

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

22

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

23

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

24

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

25

10571979

LOCK WASHER,M12

1шт.

26

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.
