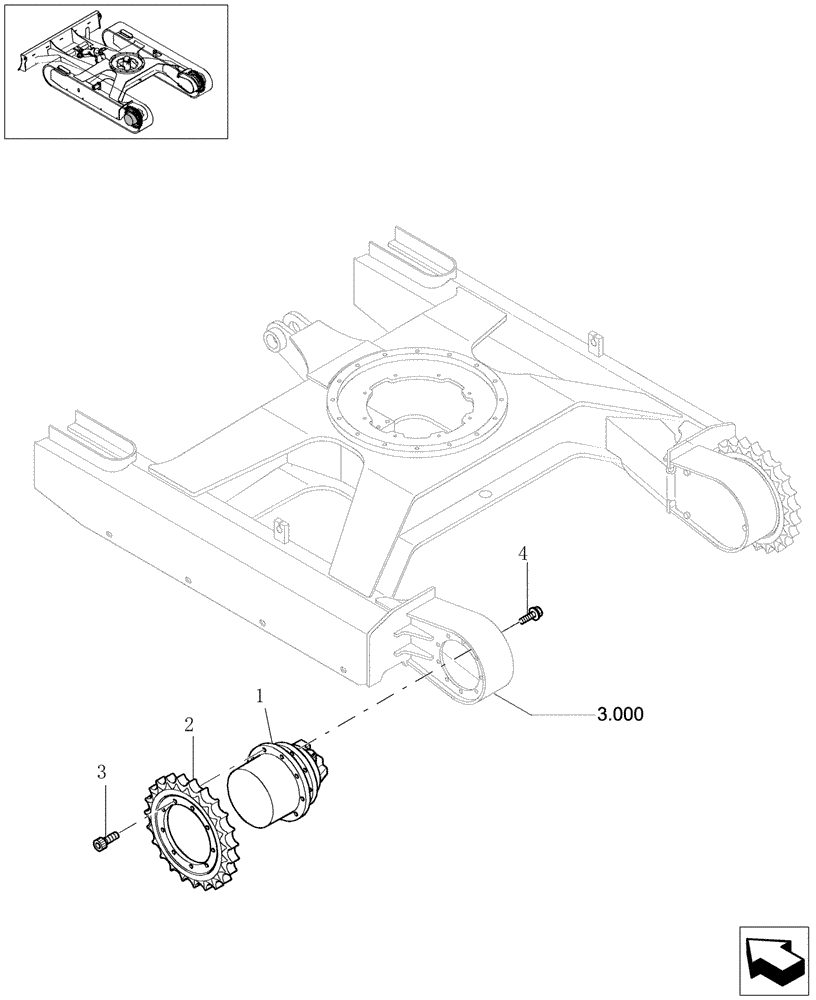

Запчасти Case CX27B (3.010[01]) - MOTOR PROPEL (03) - Section 3

1

72281630

HYDRAULIC MOTOR

2шт.

See Page 3.010A

1шт.

PM15V00021F1R

REMAN-HYD MOTOR

CX27B (N5GN01293 & AFTER) (9/05-), Reman For New P/N 72281630

2шт.

PM15V00021F1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

72282279

SPROCKET,19 teeth, 318mm OD

2шт.

3

14420174

SCREW,M10 x 25mm, Cl 12.9

TCE M10x25

24шт.

4

72952516

FLANGE BOLT

24шт.
