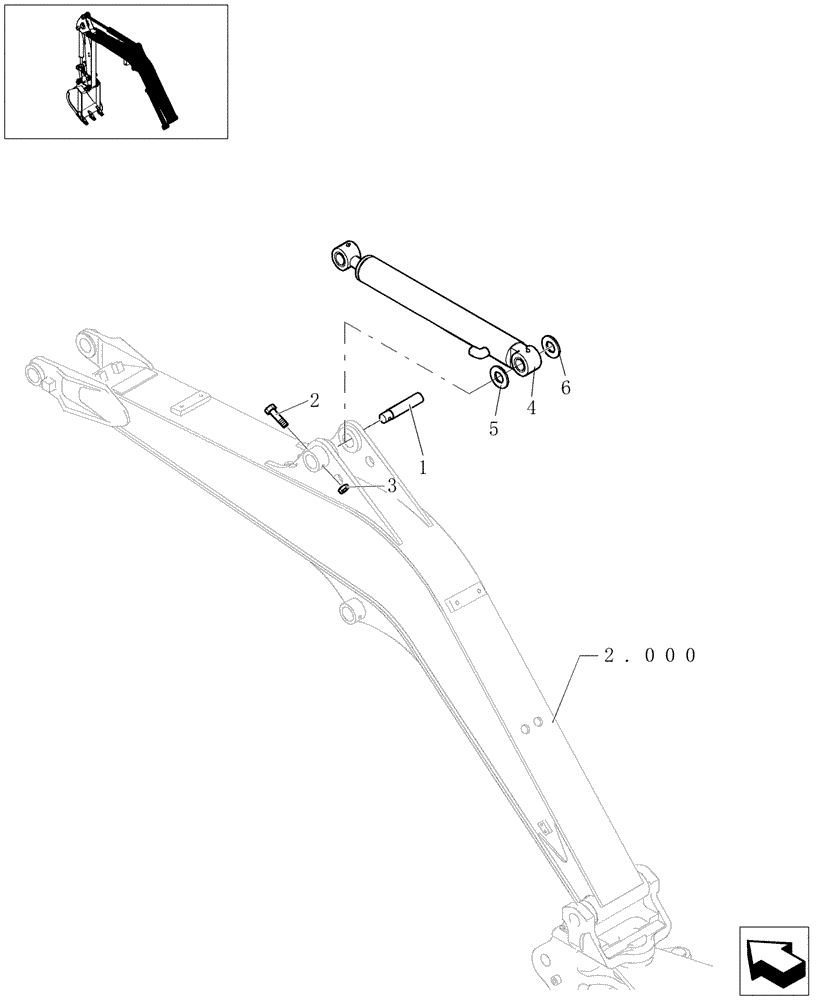

Запчасти Case CX27B (2.020[01]) - ARM CYLINDER ASSEMBLY (02) - Section 2

1

72283159

PIN

1шт.

2

11107834

SCREW

TE M10x80

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

4

72286205

HYDRAULIC CYLINDER

1шт.

See Page 2.020A

1шт.

Up To S/N N7GN07716

1шт.

4

87616282

HYDRAULIC CYLINDER

1шт.

See Page 2.020A

1шт.

From S/N N7GN07717

1шт.

5

72281403

SHIM,42mm ID x 65mm OD x 0.90mm Thk

1шт.

6

72950988

SHIM

1шт.
