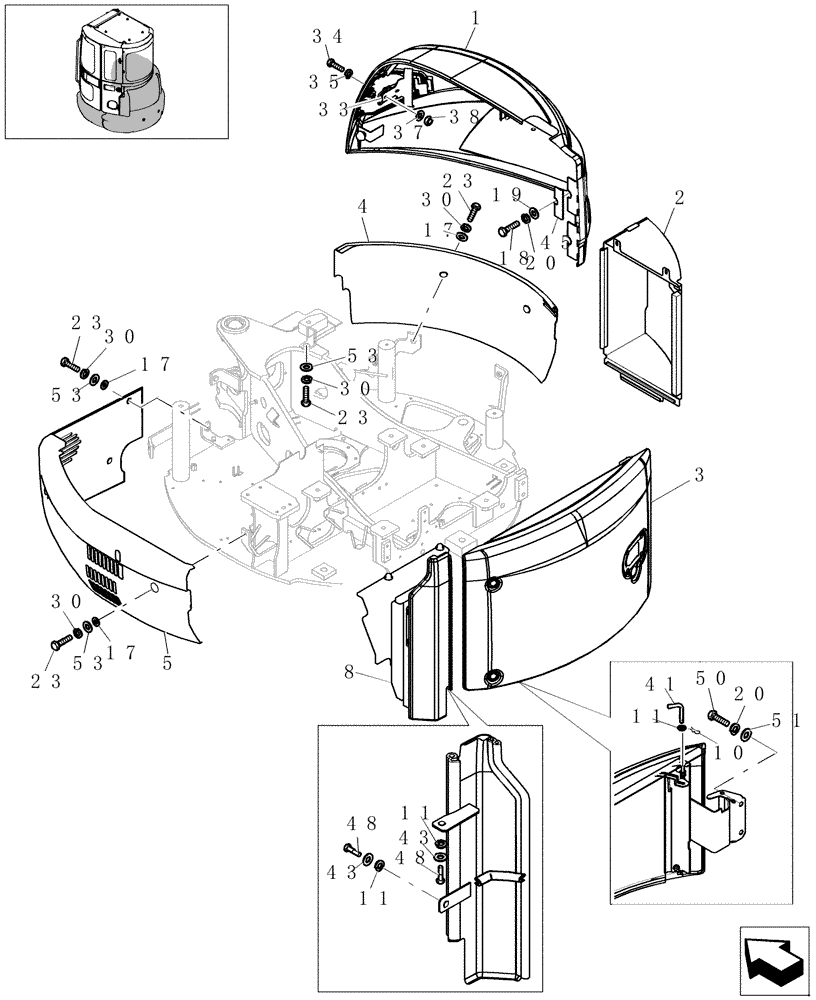

Запчасти Case CX27B (1.300[03]) - GUARDS - CAB (01) - Section 1

1

72172279

COVER ASSY

1шт.

See Page 1.300 05

1шт.

2

72282110

DUCT

1шт.

See Page 1.300 06

1шт.

3

72172326

COWLING

1шт.

See Page 1.300 07

1шт.

4

72282112

COVER ASSY

1шт.

See Page 1.300 08

1шт.

5

72282113

COVER ASSY

1шт.

See Page 1.300 09

1шт.

8

72282188

COVER

1шт.

See Page 1.300 11

1шт.

10

72275189

COTTER PIN

2шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

17

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

5шт.

18

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

19

13550521

WASHER,12.2mm ID x 24mm OD x 3mm Thk

Ø12

4шт.

20

10571979

LOCK WASHER,M12

6шт.

23

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

6шт.

30

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

33

72281007

LOCK

1шт.

34

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

35

10571579

LOCK WASHER,M6

2шт.

37

14499321

WASHER,M6 x 11 x 1.6 Thk

4шт.

38

15896224

NUT,Hex, M6

M6

2шт.

41

72286225

STAY

1шт.

43

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

45

72282135

SHIM

2шт.

48

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

50

11112234

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

51

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

2шт.

53

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.
