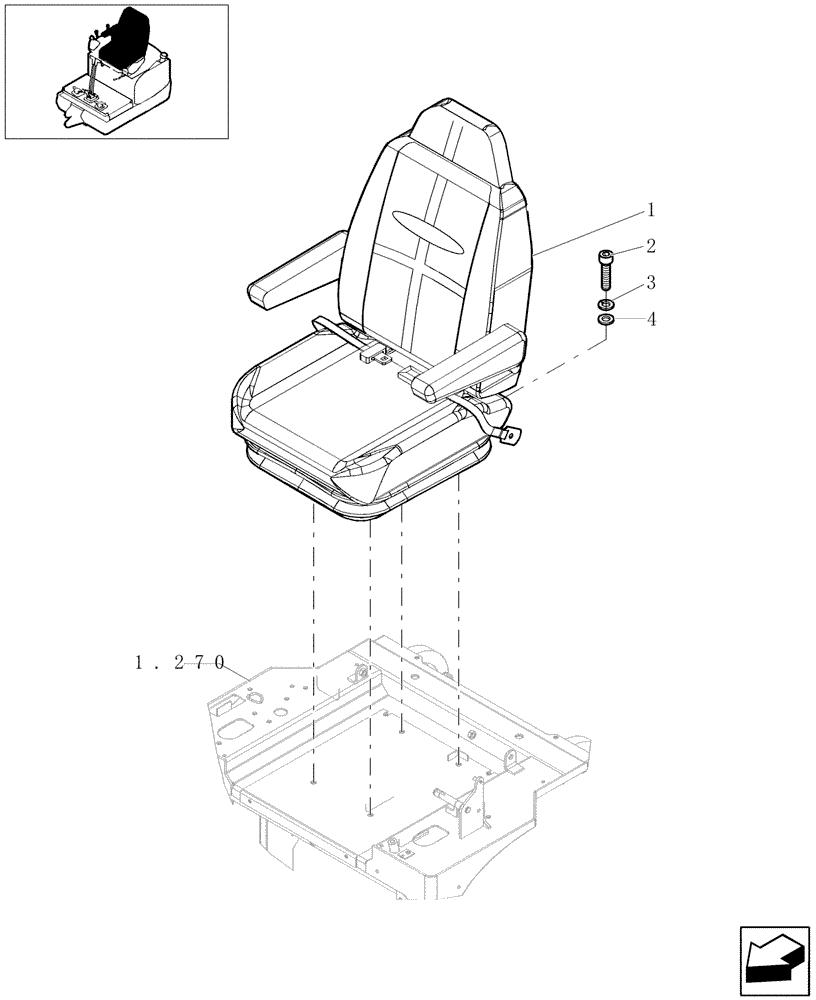

Запчасти Case CX27B (1.250[09]) - OPERATORS SEAT - CAB (01) - Section 1

1

72274067

SEAT

1шт.

See Page 1.250A 02

1шт.

Up To S/N N6GN02795

1шт.

1

87489289

SEAT

1шт.

See Page 1.250A 02A

1шт.

From S/N N6GN02796

1шт.

2

14306374

SCREW,M8 x 20mm, Cl 12.9

TCE M8x20

4шт.

Up To S/N N6GN02795

1шт.

2

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

From S/N N6GN02796

1шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

Ø8

4шт.

Up To S/N N6GN02795

1шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

From S/N N6GN02796

1шт.

4

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

From S/N N6GN02796

1шт.
