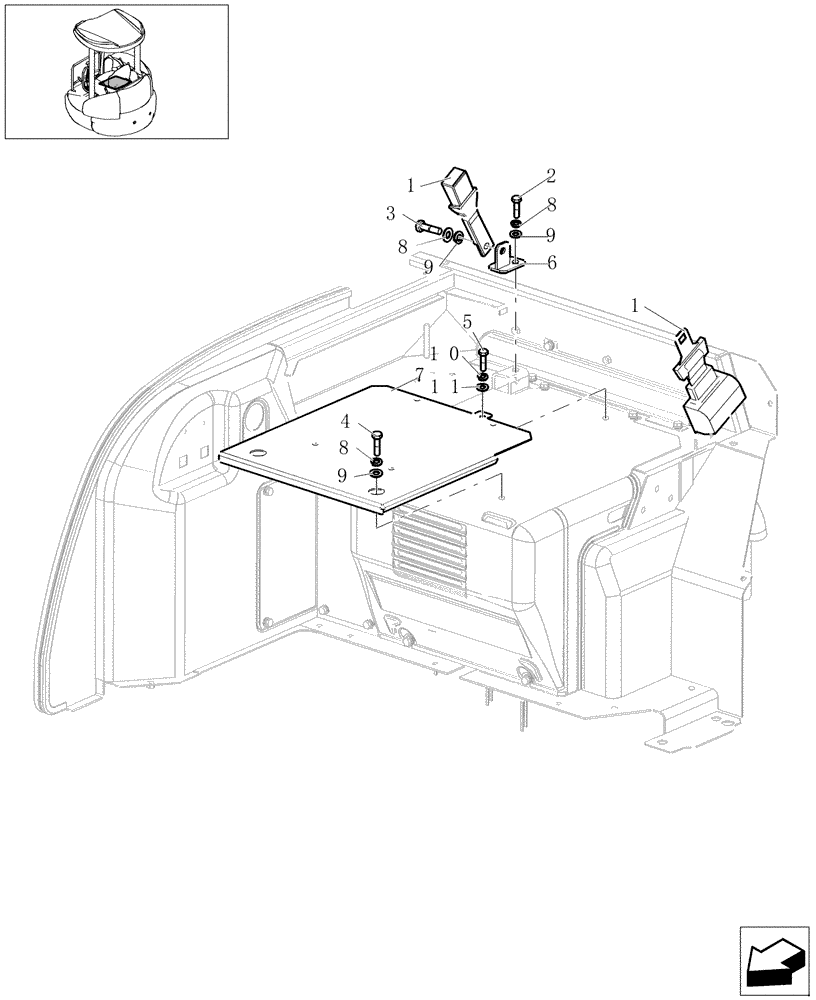

Запчасти Case CX27B (1.250[07]) - SEAT INSTAL (01) - Section 1

1

72280893

SAFETY BELT ,48.00 mm W

1шт.

2

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

3

11106434

BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd

1шт.

4

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

2шт.

5

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

6

87544512

BRACKET

1шт.

7

87544459

COVER

1шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

5шт.

9

13578621

WASHER,10.2mm ID x 30mm OD x 2mm Thk

Ø10

5шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
