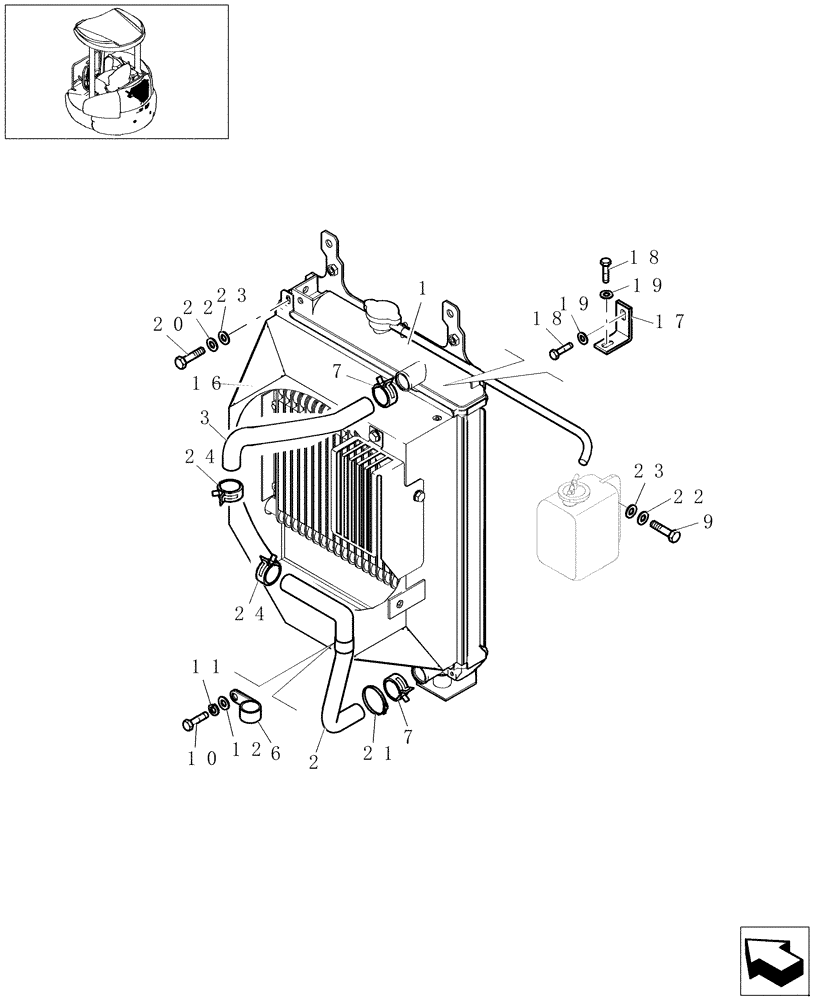

Запчасти Case CX27B (0.003[02]) - RADIATOR (00) - GENERAL

1

72172021

RADIATOR

1шт.

See Page 0.003 04

1шт.

2

72281447

LARGE HOSE

HOSE,LARGE

1шт.

3

72281448

LARGE HOSE

HOSE,LARGE

1шт.

6

71421085

CLIP

1шт.

7

13425577

HOSE CLIP,34.4mm - 37.3mm

2шт.

9

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

10

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

12

72209113

WASHER

Ø8

1шт.

16

72172022

SHROUD

1шт.

See Page 0.003 03

1шт.

17

87538850

BRACKET

1шт.

18

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

19

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

4шт.

20

10902234

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

21

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

22

10571579

LOCK WASHER,M6

3шт.

23

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

24

87526520

CLAMP

2шт.
