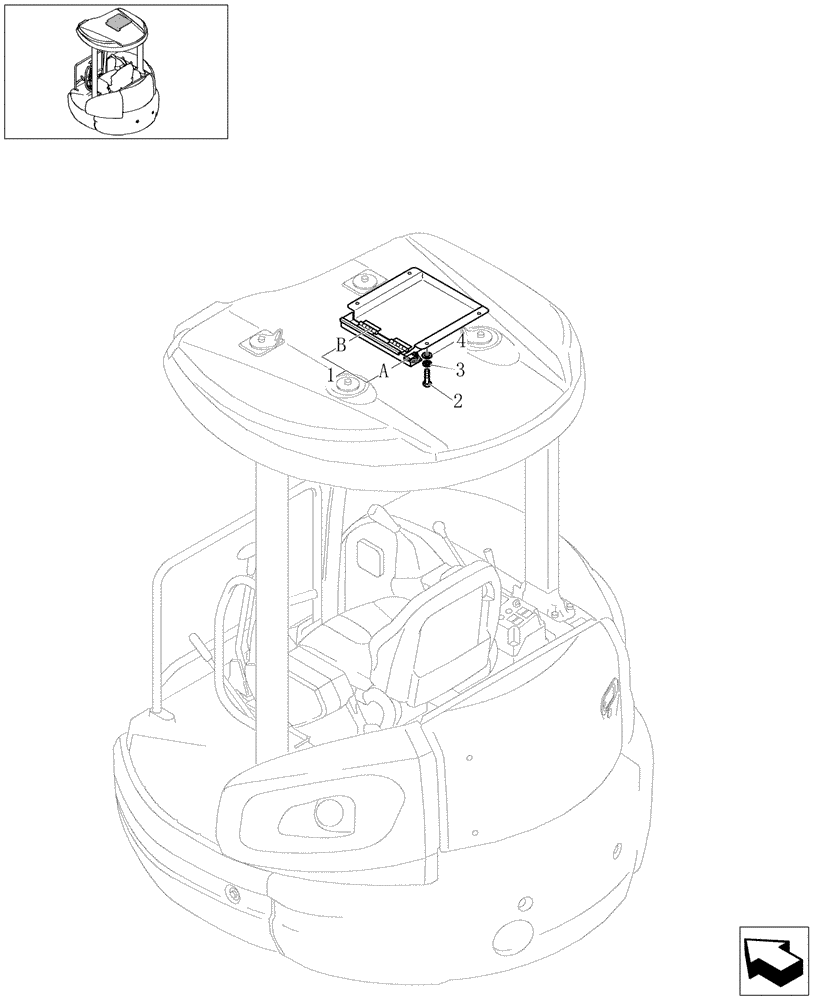

Запчасти Case CX27B (1.250[03]) - CANOPY - UPPER BOX (01) - Section 1

1

72282984

BOX

1шт.

1a

72281706

LEVER

Assy

1шт.

1b

72281708

RUBBER WEATHERSTRIP

1шт.

2

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

4

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
