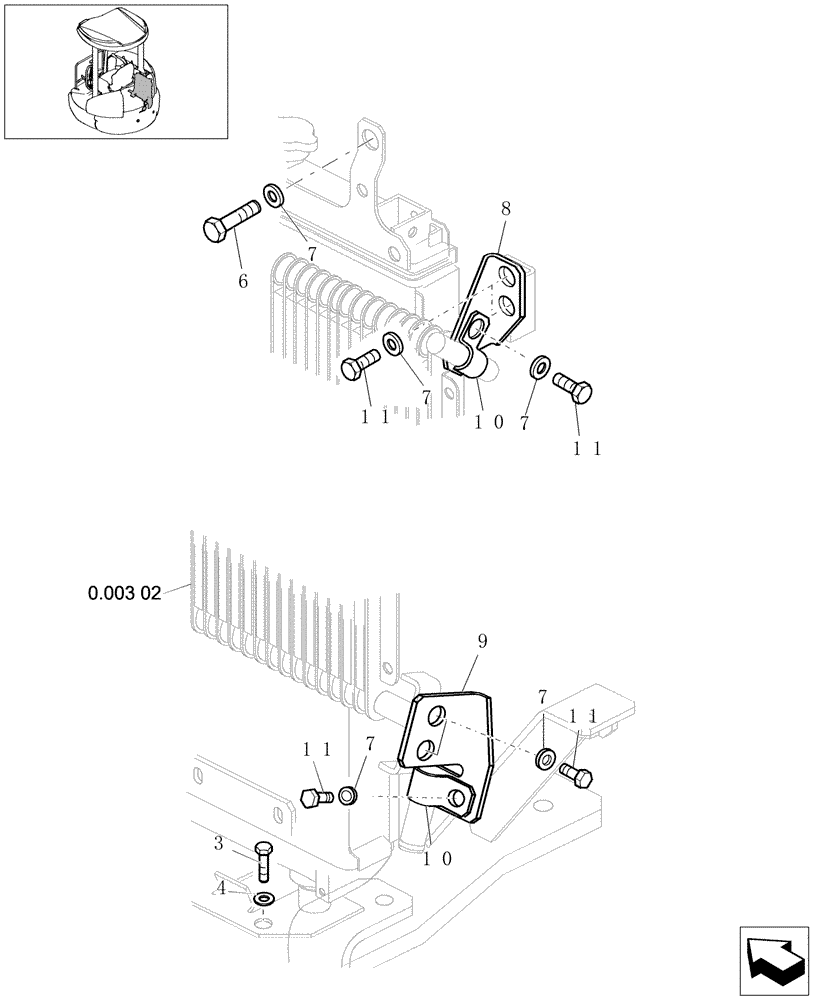

Запчасти Case CX27B (0.003[01]) - RADIATOR - INSTAL (00) - GENERAL

3

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

4

12626221

WASHER,10mm ID x 25mm OD x 3mm Thk

Ø10

2шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

7

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

Ø8

8шт.

8

87538423

PLATE

1шт.

9

87538425

PLATE

1шт.

10

87538383

PLATE

2шт.

11

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.
