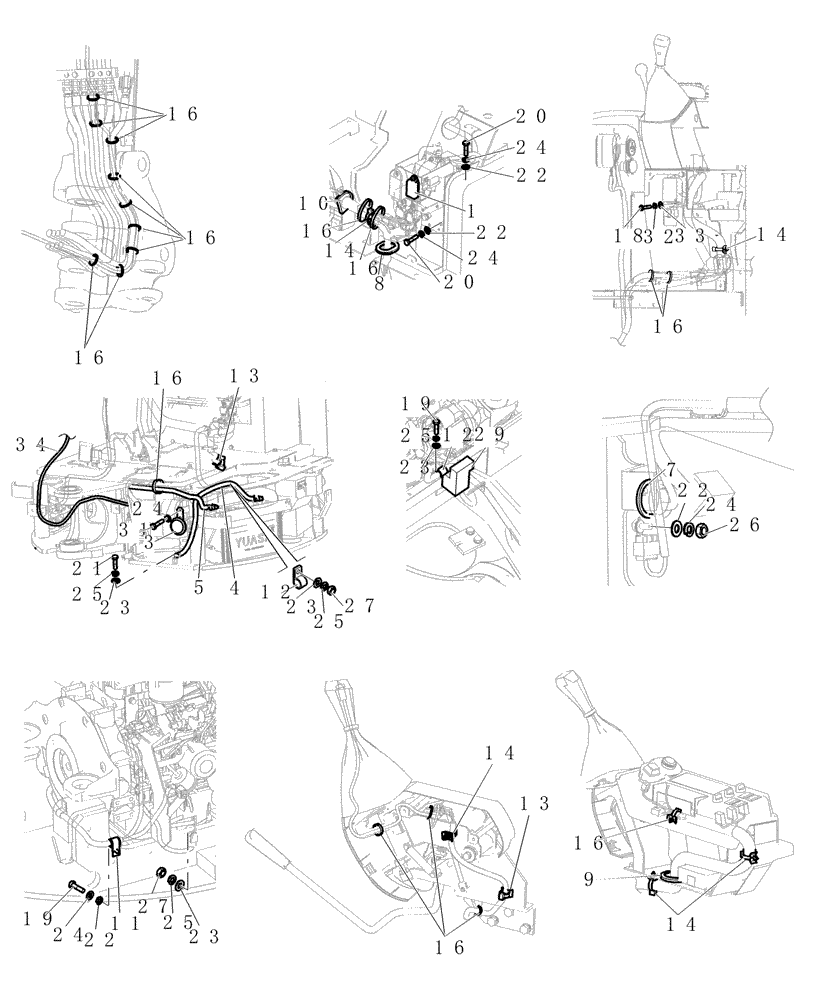

Запчасти Case CX27B (1.220[08]) - ELECTRIC SYSTEM CHASSIS UPPER (01) - Section 1

1

87529116

RELAY

1шт.

See Page 1.220 09

1шт.

Up To S/N N7GN07073

1шт.

1

87605253

RELAY

1шт.

See Page 1.220 09

1шт.

From S/N N7GN07074

1шт.

3

87689317

HORN

1шт.

4

72282256

CABLE

1шт.

Up To S/N N7GN07073

1шт.

4

87605256

CABLE

1шт.

From S/N N7GN07074

1шт.

5

72282257

CABLE

1шт.

7

72281106

GROMMET

1шт.

8

72282258

GROMMET

1шт.

9

72281108

GROMMET

1шт.

10

72282259

GROMMET

1шт.

11

71415887

CLIP

1шт.

12

71405745

CLAMP,18mm ID, 12.5mm Bolt Hole, P Type

2шт.

13

72951537

CLIP

2шт.

14

72203537

CABLE TIE,203mm L

5шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

26шт.

18

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

19

16046034

SCREW,Hex, M8 x 140mm, Cl 10.9

TE M10x20

1шт.

20

16043134

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

TE M10x14

3шт.

21

10979234

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

2шт.

22

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

23

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

24

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

25

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

26

16100824

NUT,M8, Cl 10

2шт.

27

11701724

NUT

M10

2шт.

29

72282260

FOAM INSULATION

1шт.

31

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

32

10571579

LOCK WASHER,M6

2шт.

33

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

34

72285682

HARNESS

1шт.

From S/N N7GN07074

1шт.
