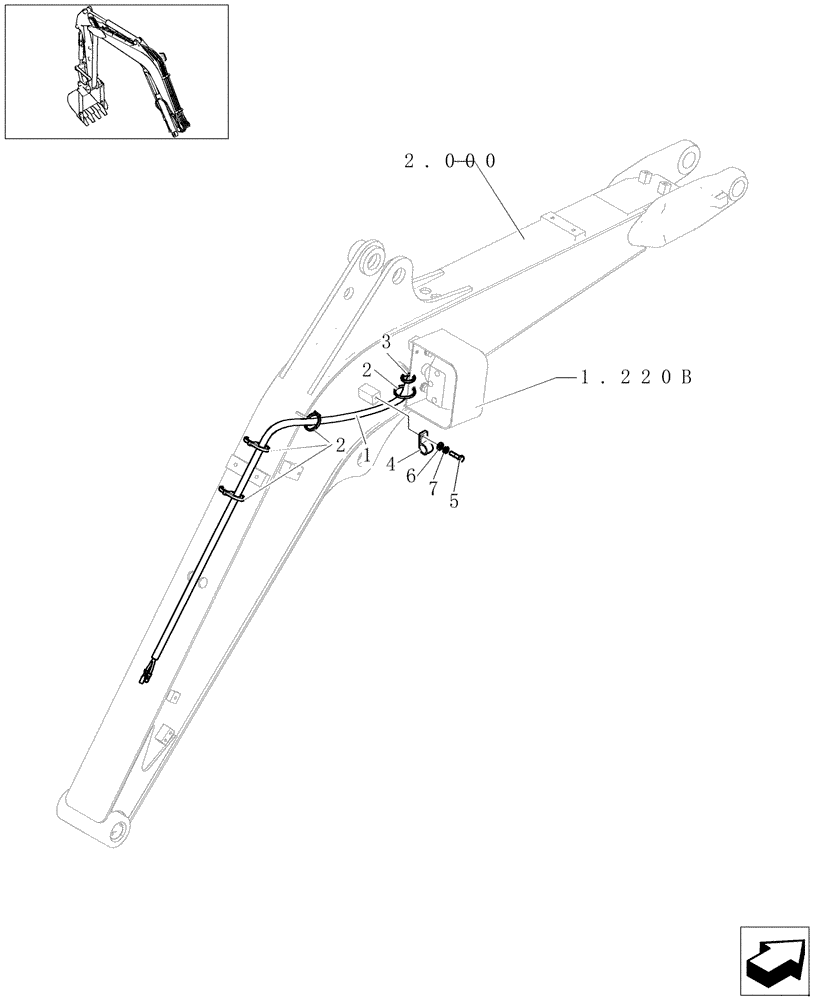

Запчасти Case CX27B (1.220[05]) - ELECTRIC SYSTEM - WORKING LIGHT (01) - Section 1

1

72282507

HARNESS

1шт.

2

14560187

COLLAR,199mm L

L=203.2mm

5шт.

3

72203537

CABLE TIE,203mm L

1шт.

4

71415887

CLIP

1шт.

5

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

1шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.
