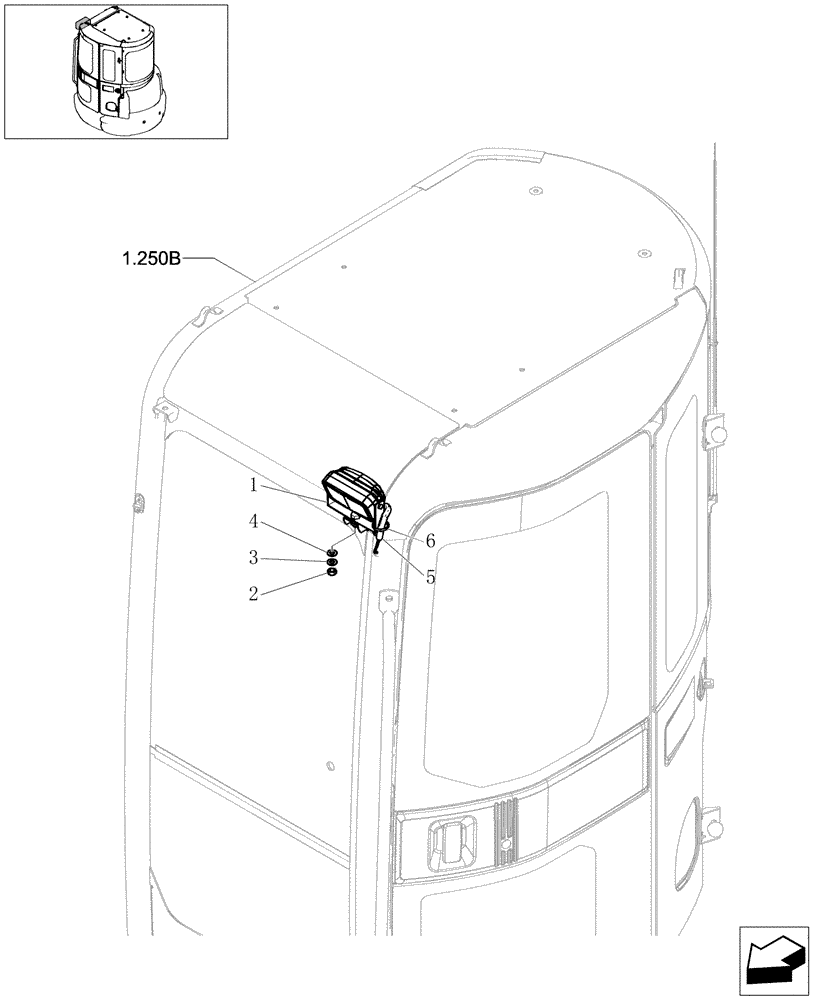

Запчасти Case CX27B (1.220[02]) - ELECTRIC SYSTEM - WORKING LIGHT (CAB) (01) - Section 1

1

72280885

WORKING LIGHT

1шт.

See Page 1.220A

1шт.

2

16103624

THIN NUT,M12 x 1.25, Cl 05

1шт.

3

10571979

LOCK WASHER,M12

1шт.

4

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

5

72281072

TUBE,10.7 mm ID, 14.1 mm OD, 180 mm Length

1шт.

6

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.
