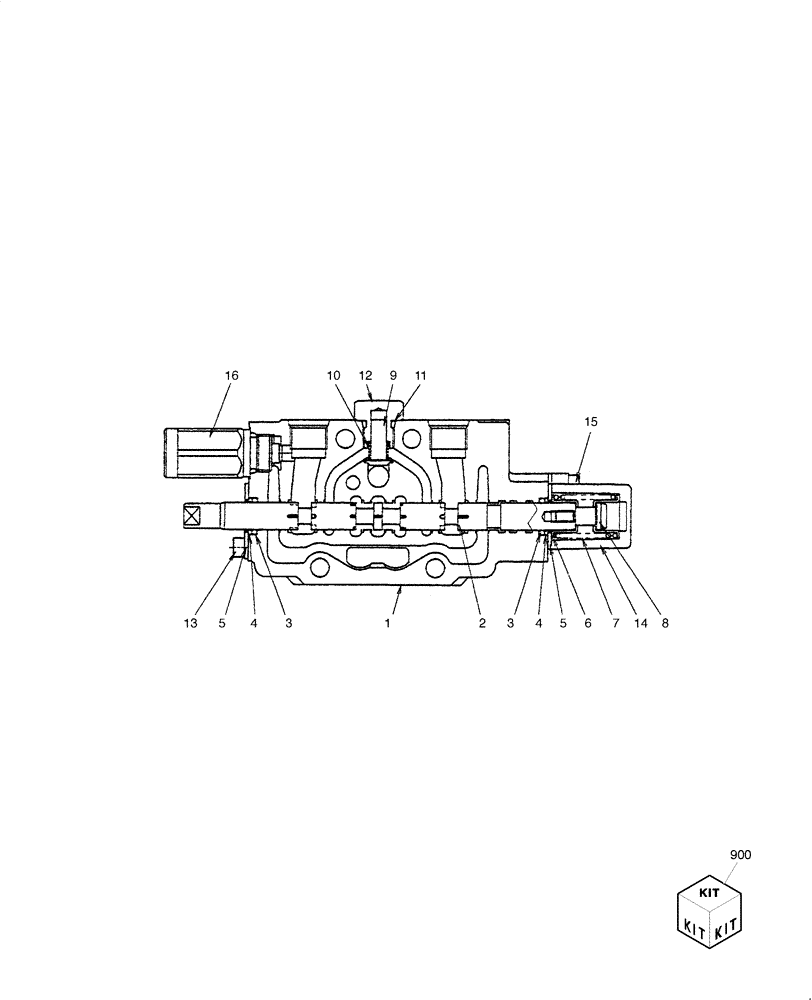

Запчасти Case CX27B (HC007-01[1]) - HYDRAULIC CONTROL VALVE - COMPONENTS - RELIEF VALVE (BOOM SWING) (35) - HYDRAULIC SYSTEMS

1/900

72282575

VALVE

1шт.

1

NS

NOT SERVICED

1шт.

2

NS

NOT SERVICED

1шт.

3

NS

NOT SERVICED

2шт.

4

NS

NOT SERVICED

2шт.

5

NS

NOT SERVICED

2шт.

6

NS

NOT SERVICED

2шт.

7

NS

NOT SERVICED

1шт.

8

NS

NOT SERVICED

1шт.

9

72957857

POPPET

1шт.

10

72957858

SPRING

1шт.

11

72283080

O-RING

1шт.

12

72957859

PLUG

1шт.

13

72275751

SCREW

2шт.

14

72957860

COVER

1шт.

15

72283701

SCREW,Hex Socket Head, M5 x 18mm

2шт.

16

72957854

VALVE

- ASSY SEE HC21

1шт.

900

72282587

REPAIR KIT

- ASSY SEE 2, 3, 4, 5, 6, 7, 8

1шт.
