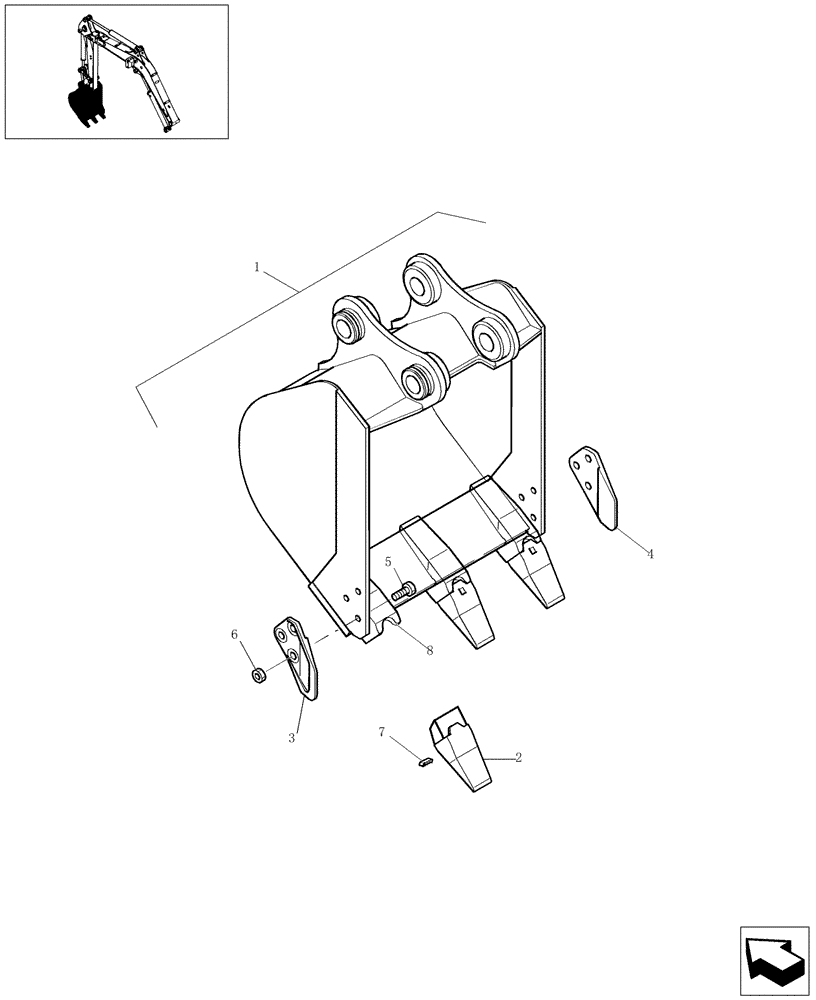

Запчасти Case CX27B (674-01[1]) - BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

72271966

BUCKET

- ASSY (2/8) L=250

1шт.

1

72272618

BUCKET

- ASSY (2/8) L=300

1шт.

1

72272629

BUCKET

- ASSY (2/8) L=350

1шт.

1

72272588

BUCKET

- ASSY (2/8) L=450

1шт.

1

72272685

BUCKET

- ASSY (2/8) L=500

1шт.

1

72272696

BUCKET

- ASSY (2/8) L=600

1шт.

1

72273941

BUCKET

- ASSY (2/8) L=700

1шт.

2

72274032

BUCKET TOOTH

1шт.

3

72270910

SIDE PLATE

1шт.

4

72270909

SIDE PLATE

1шт.

5

11112432

SCREW

12x30

6шт.

6

11702924

NUT

12

6шт.

7

72274034

KEY

1шт.

8

72274033

BUCKET TOOTH SHANK

1шт.
