(07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2

Запчасти Case CX27B (07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2 (35) - HYDRAULIC SYSTEMS

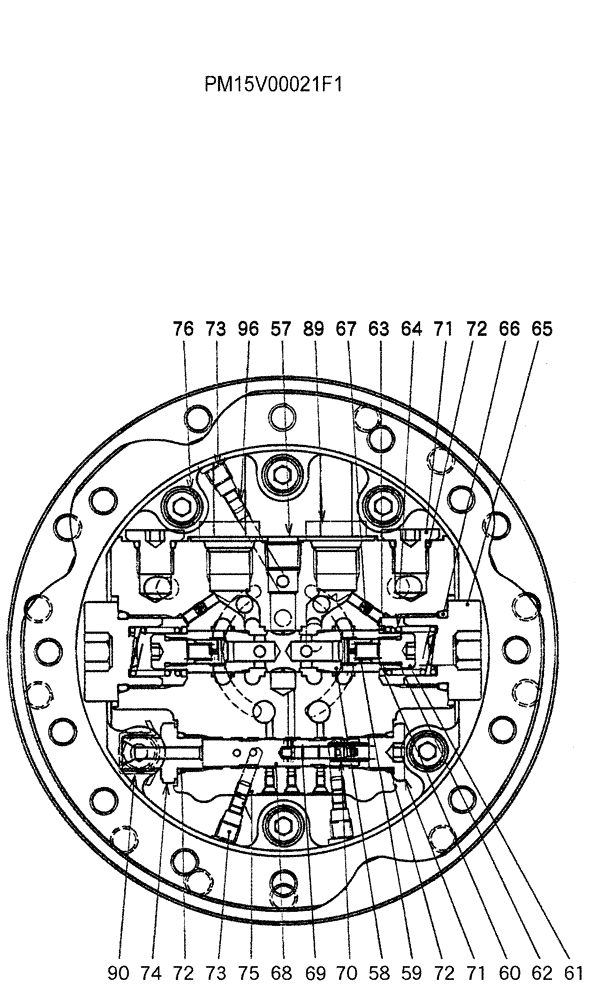

Схема запчастей Case CX27B - (07-021) - MOTOR ASSY (PROPELLING), (PM15V00021F1), PAGE 1 OF 2 (35) - HYDRAULIC SYSTEMS
74
76
64
90
61
73
72
73
59
89
67
70
66
71
72
72
68
96
60
75
58
65
62
57
63
69
71
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PM15V00021F1

HYDRAULIC MOTOR,671CC

ASSY (PROPELLING), Page 1 of 2

1шт.

PM15V00021F1R

REMAN-HYD MOTOR

CX27B COMPACT CRAWLER EXCAVATOR ASN PV11-30001 (ASN N6TN41314) (NA)

1шт.

PM15V00021F1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

57

NSS

NOT SOLD SEPARAT

PLATE

1шт.

58

PM15V00021S058

SPOOL

1шт.

59

PM15V00004S002

GASKET

2шт.

60

PM15V00004S003

SPRING

2шт.

61

PU15V00003S314

PLUG

2шт.

62

PM15V00004S005

O-RING

2шт.

63

PM15V00004S025

SEAT

2шт.

64

PM15V00004S026

COVER

2шт.

65

PM15V00021S065

CAP

2шт.

66

ZD12P02400

O-RING

2шт.

67

PM15V00004S029

ORIFICE

2шт.

68

NSS

NOT SOLD SEPARAT

SPOOL A

1шт.

69

NSS

NOT SOLD SEPARAT

SPOOL C

1шт.

70

PM15V00021S070

SPRING

1шт.

71

PU15V01003S027

PLUG

3шт.

72

ZD12P01100

O-RING

4шт.

73

2441U802S47

PLUG

3шт.

74

PM15V00021S074

ADAPTER

Union fitting

1шт.

75

PV15V00002S040

ORIFICE

4шт.

76

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

6шт.

89

NSS

NOT SOLD SEPARAT

PLUG

2шт.

90

NSS

NOT SOLD SEPARAT

PLUG

1шт.

96

PV15V00002S040

ORIFICE

1шт.
