(05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM)

Запчасти Case CX27B (05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS

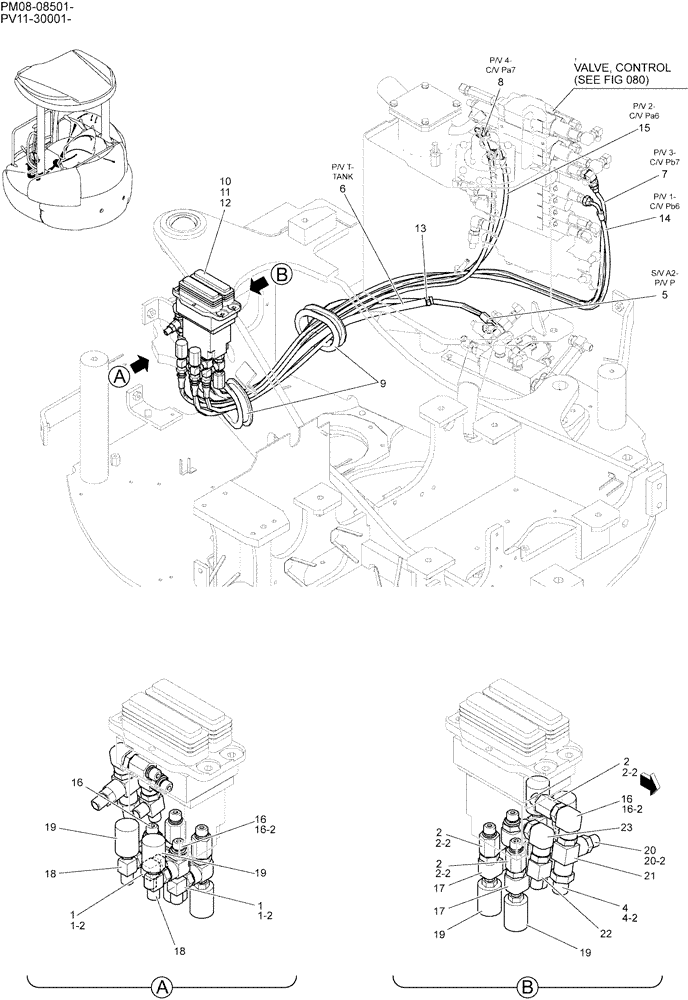

Схема запчастей Case CX27B - (05-002) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS
19
12
19
17
6
14
1
16
1-2
16
19
20-2
23
17
2
1-2
16
4
22
7
19
5
2
15
18
21
9
2-2
13
11
4-2
20
8
18
1
16-2
2-2
10
2-2
16-2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

CONTROL LINES, PROPEL (PM62H00006F1)

1шт.

1

HH35S04004G1

90 ELBOW

2шт.

1-2

ZD12P01100

O-RING

2шт.

2

2444Z2525

HYD CONNECTOR

3шт.

2-2

ZD12P01100

O-RING

3шт.

4

HH35S06004G1

90 ELBOW

1шт.

4-2

ZD12P01400

O-RING

1шт.

5

HX34L04105DX

HYDRAULIC HOSE

HOSE

1шт.

6

PW68H01023DB

HOSE,9.5mm ID x 760mm L

1шт.

7

HX23L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

8

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

9

PW62H01001P1

GROMMET

2шт.

10

PM30V00019F1

PILOT VALVE

1шт.

SEE (C.P.M)

1шт.

11

ZS18C08025

SCREW,Hex, M8 x 25mm

4шт.

12

ZW16H08000

WASHER

4шт.

13

ZC16X01800

CLIP

1шт.

14

HX33L03140DX

HOSE

1шт.

15

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

1шт.

16

2444Z2894

90 ELBOW

3шт.

16-2

ZD12P01100

O-RING

3шт.

17

2444Z4231

ELBOW

2шт.

18

PV62H01001P1

ELBOW

2шт.

19

GB50S00049F2

SWITCH

Pressure (L.P.)

4шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

20-2

ZD12P01100

O-RING

1шт.

21

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

22

HH55L04004G1

TEE

1шт.

23

PH62H01003P1

ELBOW

1шт.
