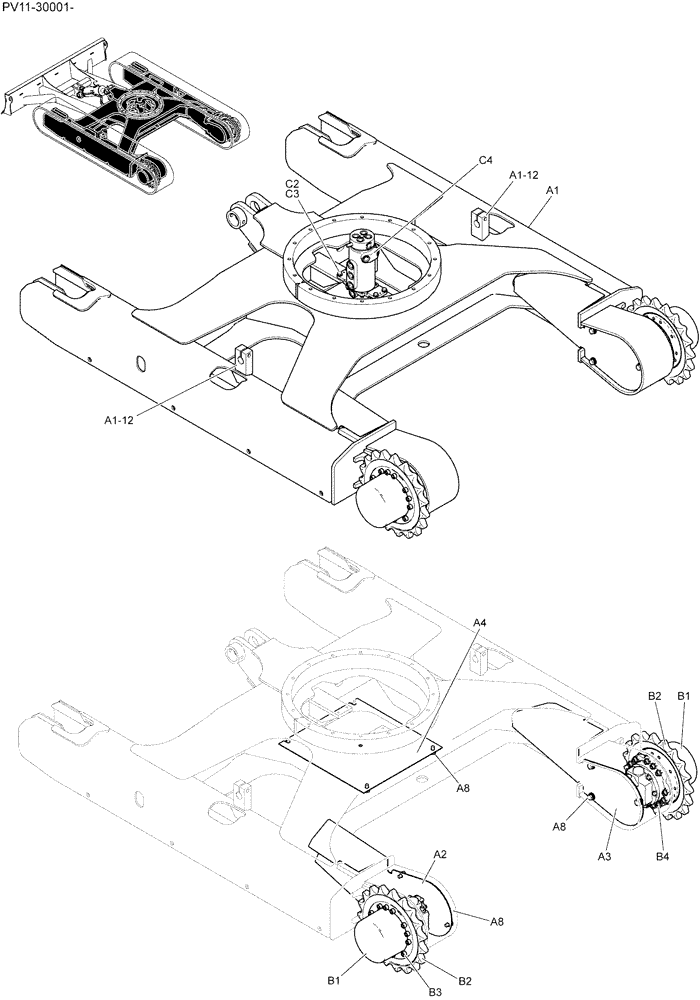

Запчасти Case CX27B (02-001) - LOW GROUP (35) - HYDRAULIC SYSTEMS

LOWER GROUP (PV01F00005F1)

1шт.

a1

PV02F00048P1

FRAME, LOWER

1шт.

a1-12

PV07F01114P1

SUPPORT

2шт.

a2

PV01F01024P1

COVER

1шт.

a3

PV01F01025P1

COVER

1шт.

a4

PM01F01008P1

COVER

1шт.

a8

ZM73C10016

BOLT,M10x16mm - Course Thread

SEMS-BOLT

10шт.

MOTOR INSTAL, PROPEL (PV53D00008F1)

1шт.

b1

PM15V00021F1

HYDRAULIC MOTOR,671CC

2шт.

PM15V00021F1R

REMAN-HYD MOTOR

CX27B COMPACT CRAWLER EXCAVATOR ASN PV11-30001 (ASN N6TN41314) (NA)

2шт.

PM15V00021F1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

b2

PV51D01002P1

SPROCKET,19 teeth, 318mm OD

2шт.

b3

ZS28C10025

SCREW,Hex Socket Head, M10 x 25mm

24шт.

b4

ZS18C10025

SCREW,Hex, M10 x 25mm

24шт.

JOINT INSTAL, SWIVEL (PM19H00009F2)

1шт.

c2

ZS18C08025

SCREW,Hex, M8 x 25mm

4шт.

c3

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

c4

PM55V00012F2

HYDRAULIC SWIVEL

1шт.
