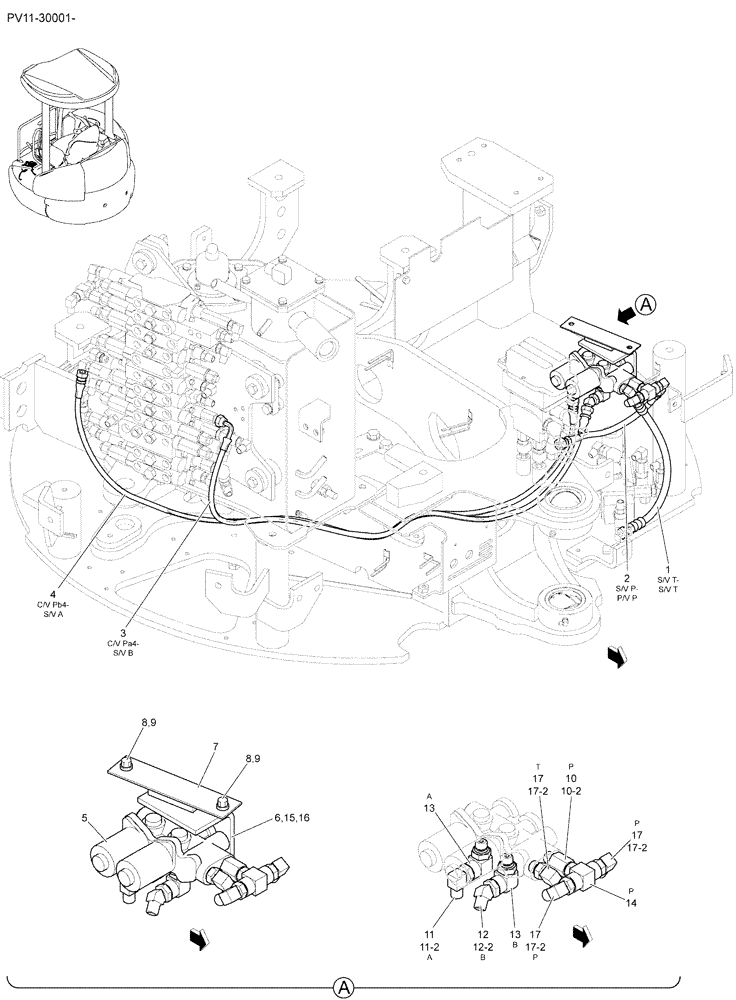

Запчасти Case CX27B (01-040) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

PV64H00016F1

LINE

CONTROL LINES, VALVE

1шт.

1

HX22L04038DX

HOSE

1шт.

2

HX24L04030DX

HOSE

1шт.

3

HX33L03115DX

HOSE,4.8mm ID x 1150mm L

1шт.

4

HX23L03135DX

HOSE

HOSE

1шт.

5

PY35V00005F2

VALVE

SOLENOID (Used for Nibbler/Breaker Open/Close)

1шт.

SEE (C.P.M)

1шт.

6

PH64H01050P1

BRACKET

1шт.

7

PH64H01047P1

SUPPORT

1шт.

8

ZM22C08020

BOLT

CAPSCREW

2шт.

9

ZW16H08000

WASHER

2шт.

10

HH25R04004G5

HYD CONNECTOR

1шт.

10-2

ZD12P01100

O-RING

1шт.

11

HH35S04004G2

90 ELBOW

1шт.

11-2

ZD12P01100

O-RING

1шт.

12

HH45S04004G2

45 ELBOW

1шт.

12-2

ZD12P01100

O-RING

1шт.

13

PV64H01042P1

ELBOW

2шт.

14

2444Z4239

TEE

1шт.

15

ZS18C10020

SCREW,Hex, M10 x 20mm

4шт.

16

ZW16H10000

WASHER

4шт.

17

HH35S04004G1

90 ELBOW

3шт.

17-2

ZD12P01100

O-RING

3шт.
