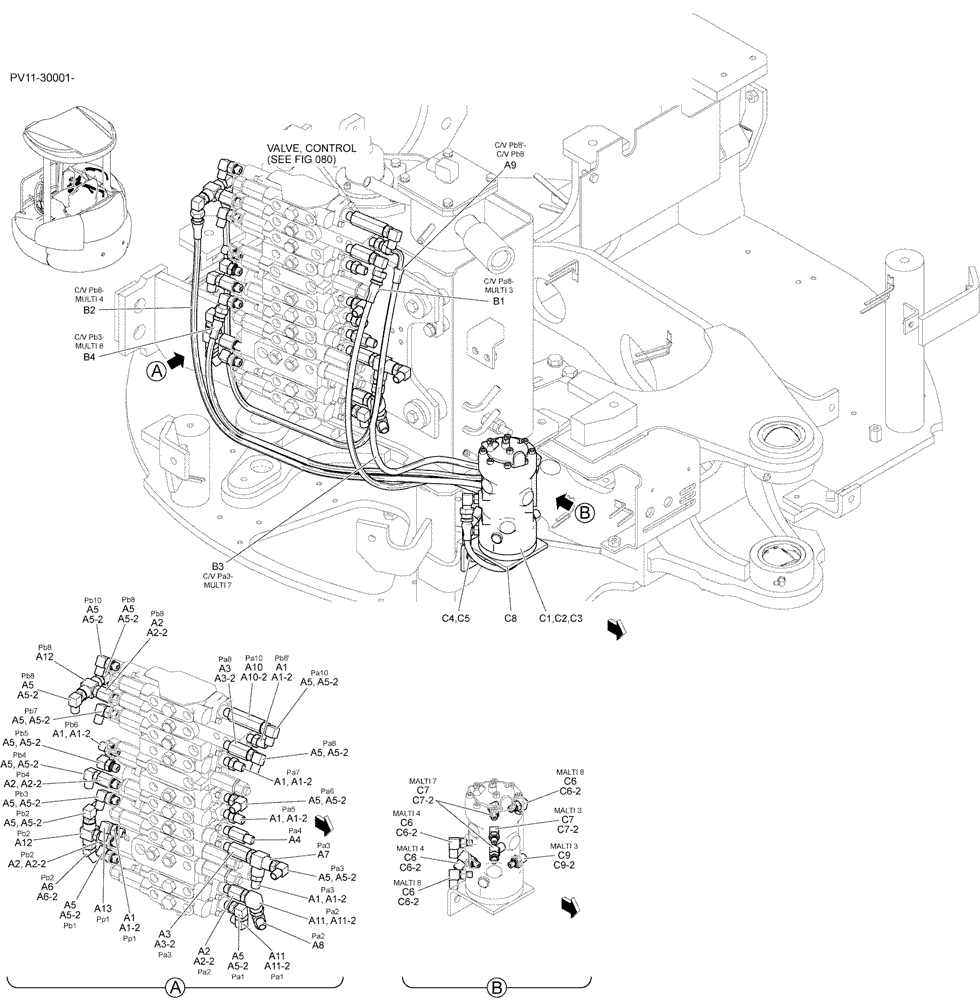

Запчасти Case CX27B (01-035) - CONTROL LINES, REMOTE (MULTI) (35) - HYDRAULIC SYSTEMS

CONTROL LINES, MAIN (PV06H00003F1)

1шт.

a1

HH25S04004G1

HYD CONNECTOR

6шт.

a1-2

ZD12P01100

O-RING

6шт.

a2

2444Z2525

HYD CONNECTOR

4шт.

a2-2

ZD12P01100

O-RING

4шт.

a3

2444T2524D2

HYD CONNECTOR

2шт.

a3-2

ZD12P01100

O-RING

2шт.

a4

PU64H01002P1

HYD CONNECTOR

1шт.

a5

HH35S04004G1

90 ELBOW

14шт.

a5-2

ZD12P01100

O-RING

14шт.

a6

HH45S04004G1

45 ELBOW

1шт.

a6-2

ZD12P01100

O-RING

1шт.

a7

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a8

HH55L04004G1

TEE

1шт.

a9

HX33L03105DX

HOSE,4.8mm ID x 1050mm L

1шт.

a10

HH25R04004G3

CONNECTION

1шт.

a10-2

ZD12P01100

O-RING

1шт.

a11

2444Z2894

90 ELBOW

2шт.

a11-2

ZD12P01100

O-RING

2шт.

a12

2444Z2439

CONNECTION

2шт.

a13

PM12H01001P1

ELBOW

1шт.

PV64H00017F1

LINE

CONTROL, MULTI

1шт.

b1

HX23L03074DX

HOSE,4.8mm ID x 740mm L

1шт.

b2

HX23L03125DX

HOSE

1шт.

b3

HX23L03048DX

HOSE

1шт.

b4

HX23L03086DX

HOSE

1шт.

PV64H00019F1

VALVE

INSTAL (JOHN-DEERE MULTI)

1шт.

c1

PX30V00060F1

CONTROL VALVE

1шт.

SEE C.P.M

1шт.

c2

ZS18C08016

SCREW,Hex, M8 x 16mm

4шт.

c3

ZW16H08000

WASHER

4шт.

c4

ZS18C10030

SCREW,Hex, M10 x 30mm

2шт.

c5

ZW16H10000

WASHER

2шт.

c6

HH35S04002G1

ELBOW

4шт.

c6-2

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

4шт.

c7

HH45S04002G1

45 ELBOW

3шт.

c7-2

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

3шт.

c8

PM64H01054P1

BRACKET

1шт.

c9

HH25S04002G2

HYD CONNECTOR

1шт.

c9-2

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

1шт.
