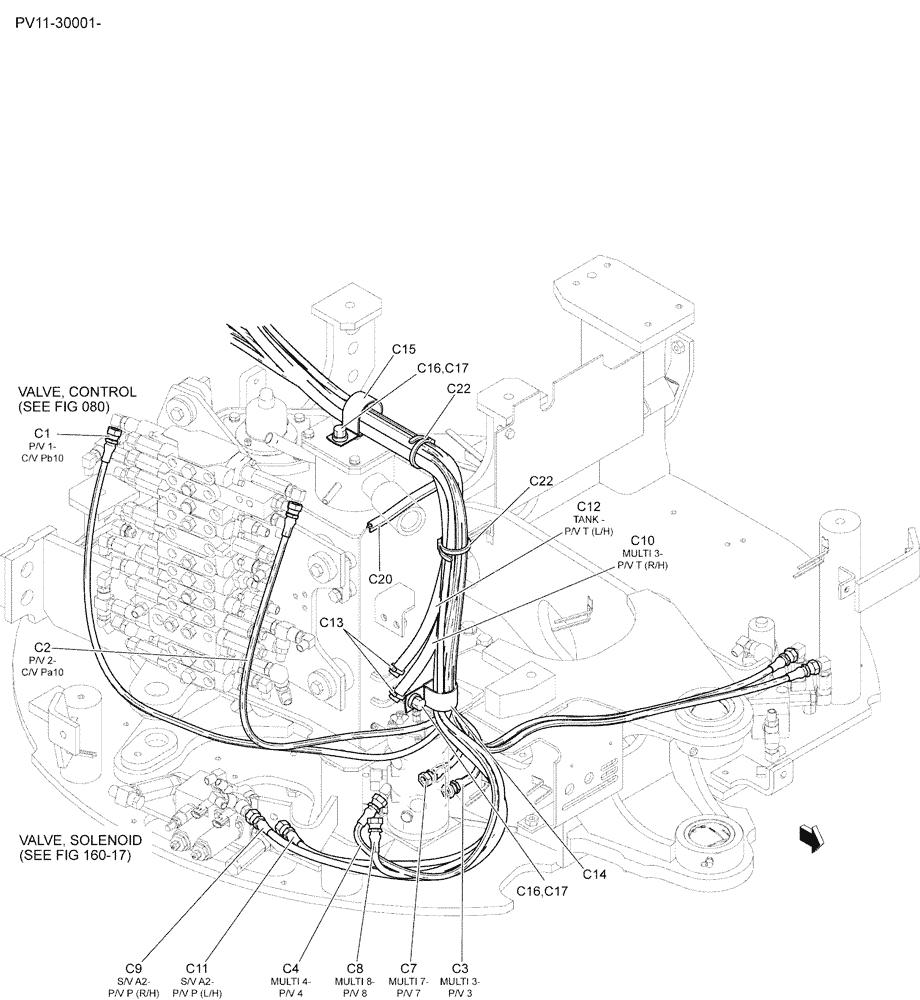

Запчасти Case CX27B (01-034) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

c1

HX33L03190DR

HOSE,4.8mm ID x 1900mm L

1шт.

c2

HX23L03165DB

HOSE,4.8mm ID x 1650mm L

1шт.

c3

HX33L03115DG

HOSE

1шт.

c4

HX23L03140DH

HOSE

1шт.

c7

HX23L03260DB

HOSE

1шт.

c8

HX23L03300DG

HOSE

1шт.

c9

HX34L04155DX

HOSE,6.3mm ID x 1550mm L

1шт.

c10

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

c11

HX24L04300DX

HOSE,6.3mm ID x 3000mm L

1шт.

c12

PW68H01023D8

HOSE,9.5mm ID x 2400mm L

1шт.

c13

ZC16X01800

CLIP

2шт.

c14

ZC46X38014

CLIP

1шт.

c15

ZC46X46014

CLIP

1шт.

c16

ZN18C12010

NUT

2шт.

c17

ZW16H12000

WASHER

2шт.

c20

YT21C01164DA

WEATHERSEAL STRIP

1шт.

c22

PY01P01043D8

CABLE TIE,102mm L

2шт.
