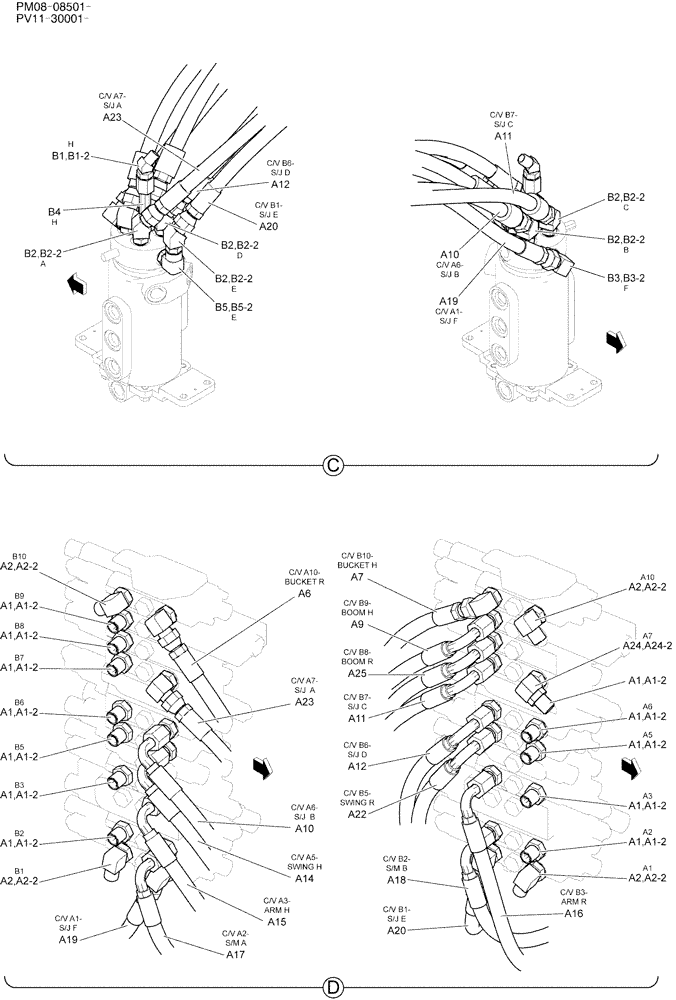

Запчасти Case CX27B (01-023) - HYD LINES, UPP (35) - HYDRAULIC SYSTEMS

a1

HH25S06006G1

HYD CONNECTOR

12шт.

a1-2

ZD12P01400

O-RING

12шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

4шт.

a2-2

ZD12P01400

O-RING

4шт.

a10

HX35L06110DY

HOSE

1шт.

a11

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

a12

HX35L06105DY

HOSE,9.5mm ID x 1050mm L

1шт.

a19

HX25L06086DY

HOSE,9.5mm ID x 860mm L

1шт.

a20

HX25L06080DY

HOSE,9.5mm ID x 800mm L

1шт.

a23

HX25L06125DY

HOSE,9.5mm ID x 1250mm L

1шт.

a24

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a24-2

ZD12P01400

O-RING

1шт.

HYD LINES, SWIVEL (PM19H00011F1)

1шт.

b1

HH45S04004G1

45 ELBOW

1шт.

b1-2

ZD12P01100

O-RING

1шт.

b2

HH45S06004G1

45 ELBOW

5шт.

b2-2

ZD12P01400

O-RING

5шт.

b3

HH35S06004G1

90 ELBOW

1шт.

b3-2

ZD12P01400

O-RING

1шт.

b4

PB19H01001P1

HYD CONNECTOR

1шт.

b5

2444Z2894

90 ELBOW

1шт.

b5-2

ZD12P01100

O-RING

1шт.
