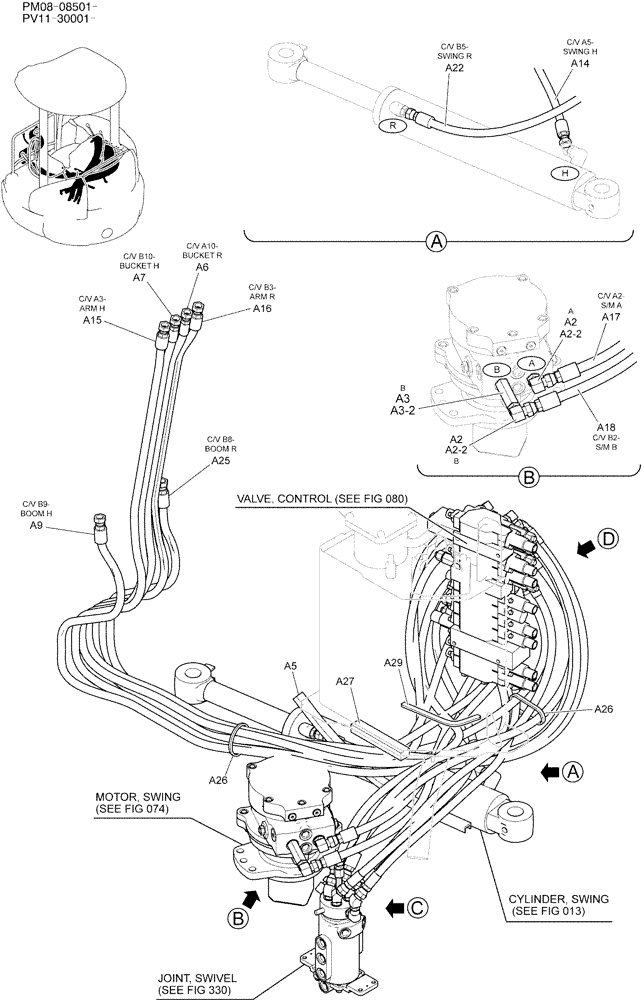

Запчасти Case CX27B (01-022) - HYD LINES, UPP (35) - HYDRAULIC SYSTEMS

HYD LINES, UPPER (PM03H00018F1)

1шт.

a2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

a2-2

ZD12P01400

O-RING

2шт.

a3

HH25R06006G5

CONNECTION

1шт.

a3-2

ZD12P01400

O-RING

1шт.

a5

YN64H01068D4

RUBBER

1шт.

a6

PM03H01117D1

HOSE,9.5mm ID x 2760mm L

HOSE

1шт.

a7

PM03H01117D2

HOSE,9.5mm ID x 2800mm L

HOSE

1шт.

a9

PM03H01118D1

HOSE,9.5mm ID x 2370mm L

HOSE

1шт.

a14

HX35L06062DY

HOSE,9.5mm ID x 620mm L

1шт.

a15

PM03H01121D1

HOSE,9.5mm ID x 2600mm L

HOSE

1шт.

a16

PM03H01121D2

HOSE,9.5mm ID x 2520mm L

HOSE

1шт.

a17

HX35L06082DY

HOSE,9.5mm ID x 820mm L

1шт.

a18

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

a22

HX35L06098DY

HOSE

1шт.

a25

PM03H01118D2

HOSE

HOSE

1шт.

a26

PY01P01043D8

CABLE TIE,102mm L

2шт.

a27

PM03H01116D1

RUBBER

1шт.

a29

PY52F01022D5

TRIM PANEL

1шт.
