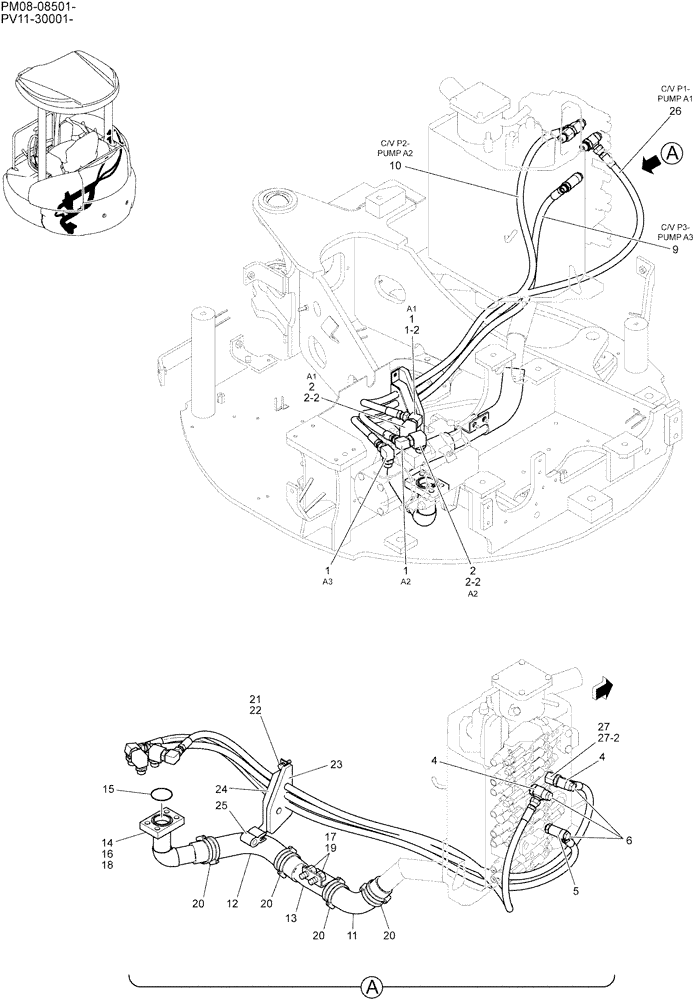

Запчасти Case CX27B (01-021) - HYD LINES, PUMP (35) - HYDRAULIC SYSTEMS

HYD LINES, PUMP (PM30H00006F1)

1шт.

1

HH35S06008G1

ELBOW

3шт.

1-2

ZD12P01800

O-RING

3шт.

2

2444Z3715

90 ELBOW

2шт.

2-2

ZD12P01800

O-RING

2шт.

4

PM30H01061P1

TEE

2шт.

5

PU64H01003P1

ELBOW

1шт.

6

ZE72X04000

PLUG

3шт.

9

HX25L06150DY

HOSE,9.5mm ID x 1500mm L

1шт.

10

HX25L06175DY

HOSE,9.5mm ID x 1750mm L

1шт.

11

PM30H01051P1

HOSE

1шт.

12

PM30H01052P1

HOSE

1шт.

13

PM30H01060P1

TUBE

1шт.

14

PM30H01055P1

TUBE

1шт.

15

ZD11G05000

O-RING,3.1mm Thk x 49.4mm ID, 70 Duro

1шт.

16

ZS28C12035

CAPSCREW,Hex Socket Head, M12 x 35mm

4шт.

17

ZS18C12025

SCREW,Hex, M12 x 25mm

2шт.

18

ZW26K12000

LOCK WASHER

4шт.

19

ZW16H12000

WASHER

2шт.

20

ZC16X05000

CLIP

8шт.

21

ZN18C08007

NUT

1шт.

22

ZW16H08000

WASHER

1шт.

23

PM30H01063P1

GROMMET

1шт.

24

PM30H01062P1

PLATE

1шт.

25

PM21C01152DL

WEATHERSTRIP

1шт.

26

HX25L06160DY

HOSE,9.5mm ID x 1600mm L

1шт.

27

HH25R08008GB

HYD CONNECTOR

1шт.

27-2

ZD12P01800

O-RING

1шт.
