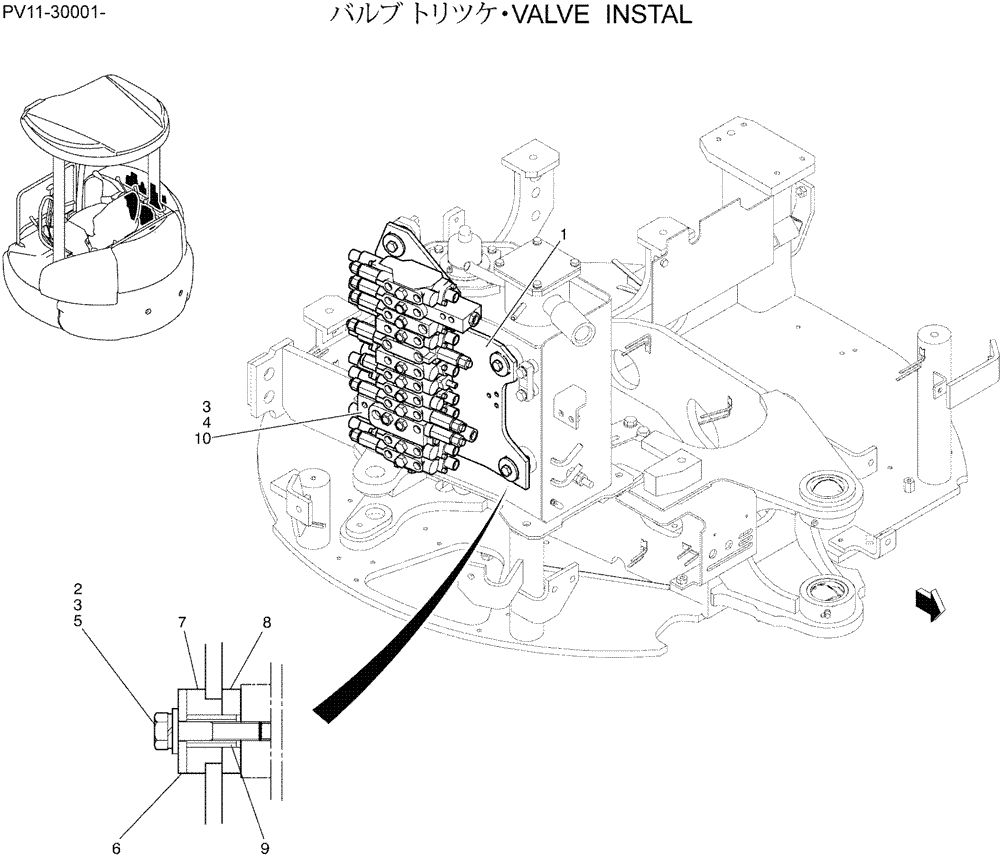

Запчасти Case CX27B (01-020) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

VALVE INSTAL (PV64H00021F1)

1шт.

1

PM64H01068P1

BRACKET

1шт.

2

ZS18C10050

SCREW,Hex, M10 x 50mm

4шт.

3

ZW16H10000

WASHER

7шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

5

ZW26X10000

LOCK WASHER

4шт.

6

2418T21137

WASHER

4шт.

7

PW64H01062P1

RUBBER

4шт.

8

2416Z649

CUSHION

4шт.

9

2418T17903D9

SPACER

4шт.

10

PM30V00052F1

VALVE ASSY, CONTROL

1шт.

SEE (C.P.M)

1шт.
