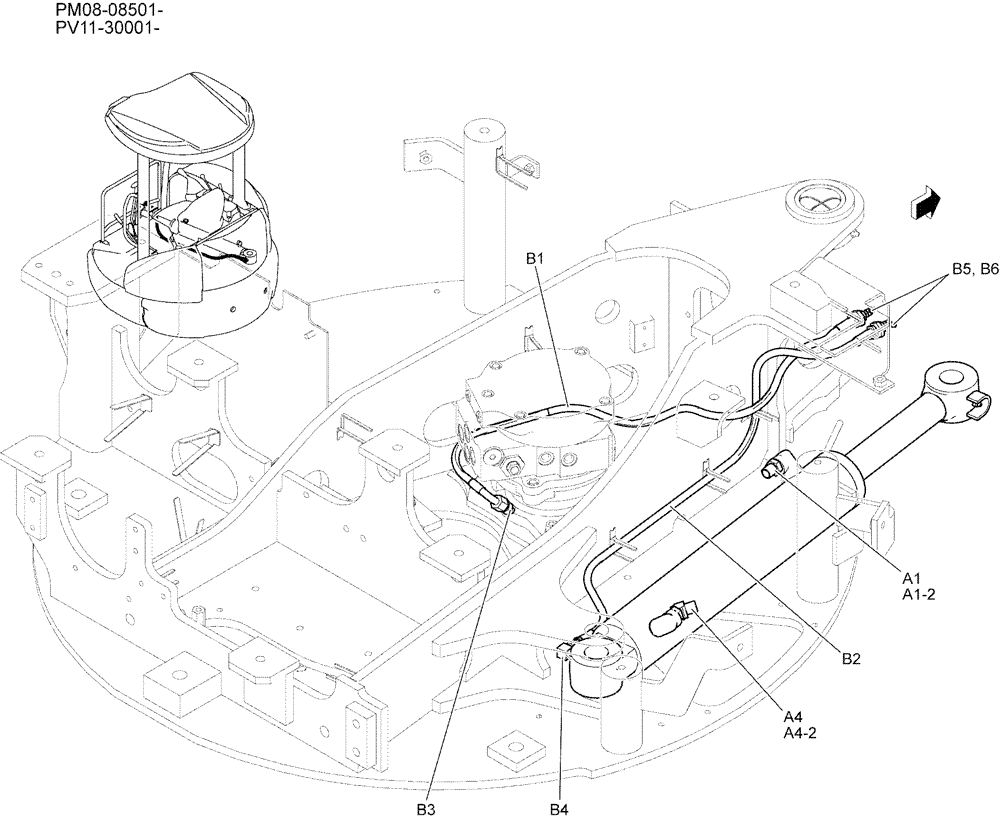

Запчасти Case CX27B (01-019) - HYD LINES, CYLINDER (35) - HYDRAULIC SYSTEMS

HYD LINES, CYLINDER (PM42H00028F1)

1шт.

a1

HH25S06006G1

HYD CONNECTOR

1шт.

a1-2

ZD12P01400

O-RING

1шт.

a4

HH45S06006G1

45 ELBOW

1шт.

a4-2

ZD12P01400

O-RING

1шт.

LUB LINES (PM71H00001F1)

1шт.

b1

PM52F01221D4

HOSE,6.3mm ID x 459mm L

1шт.

b2

PH42H01008DD

HOSE,6.3mm ID x 940mm L

1шт.

b3

HH25Z04002G1

CONNECTION

1шт.

b4

PV03H01004P1

90 ELBOW

1шт.

b5

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

b6

ZW16X06000

WASHER

2шт.
