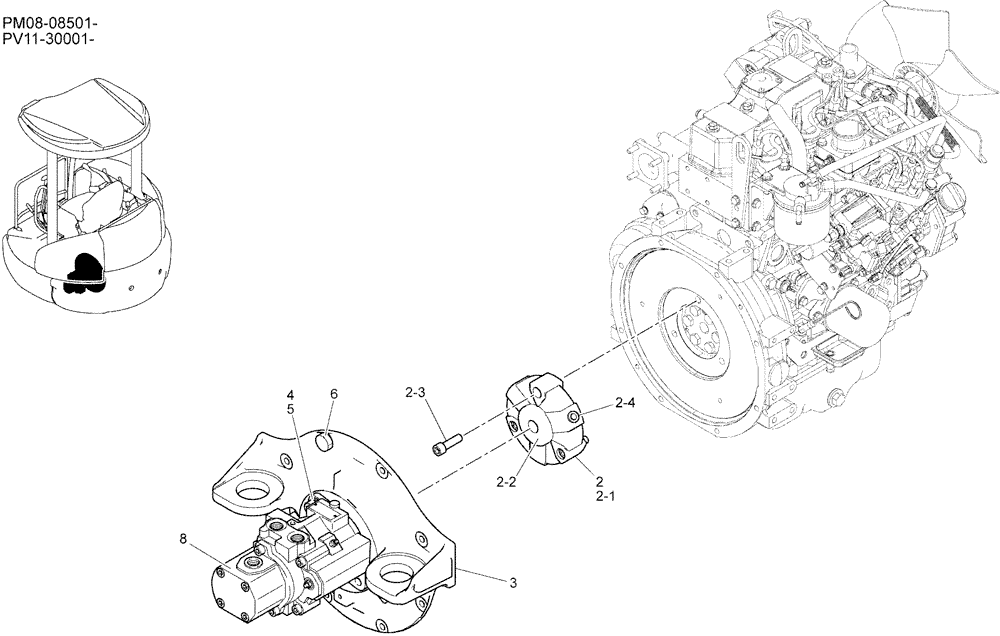

Запчасти Case CX27B (01-017) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS

POWER TAKE-OFF ASSY (PM30P00006F1)

1шт.

2

PW30P01007F1

COUPLING

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

3

PW30P01005P2

BRACKET

BRACKET

1шт.

4

PV17M01003D1

SCREW

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

8

PM10V00017F1

HYDRAULIC PUMP

1шт.

SEE C.P.M

1шт.
