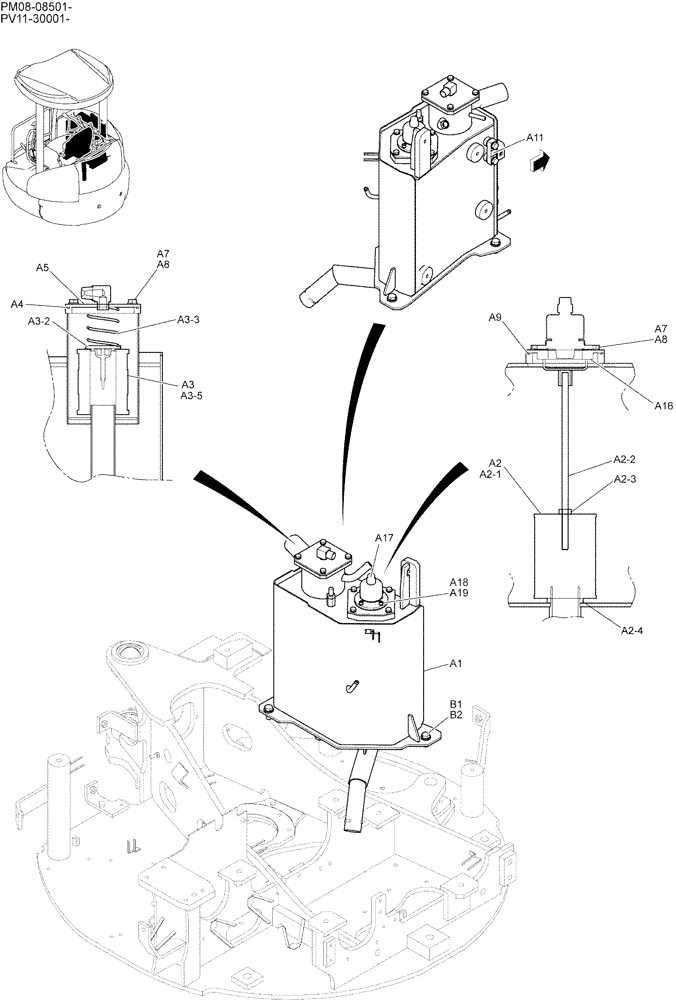

Запчасти Case CX27B (01-014) - TANK ASSY, HYD (NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

TANK ASSY, HYD (NIBBLER & BREAKER) (PM33H00032F1)

1шт.

a1

PM33H00030P1

TANK

1шт.

a2

PM50V00020F1

STRAINER ASSY.

1шт.

a2-1

PM50V00017S001

FILTER STRAINER

1шт.

a2-2

PM50V00017S006

BOLT

BOLT

1шт.

a2-3

ZN11C10008

NUT

1шт.

a2-4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

a3

PW50V00012F2

HYDRAULIC OIL FILTER

1шт.

a3-2

PW21V00004P1

VALVE

1шт.

a3-3

YR52V01001S004

SPRING

1шт.

a3-5

YR52V01003P1

FILTER

1шт.

a4

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

a5

PM33H01083P2

COVER

ELEMENT, FILTER

1шт.

a7

ZW26X08000

LOCK WASHER

8шт.

a8

ZS18C08016

SCREW,Hex, M8 x 16mm

8шт.

a9

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

a11

PE58S00001P1

GAUGE

1шт.

a16

PW33H01137P1

COVER

1шт.

a17

YN57V00002F4

BREATHER ASSY.

1шт.

a18

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

4шт.

a19

ZW26K06000

LOCK WASHER

4шт.

TANK INSTAL, HYD (PM33H00026F1)

1шт.

b1

ZS18C12030

SCREW,Hex, M12 x 30mm

3шт.

b2

ZW16H12000

WASHER

3шт.
