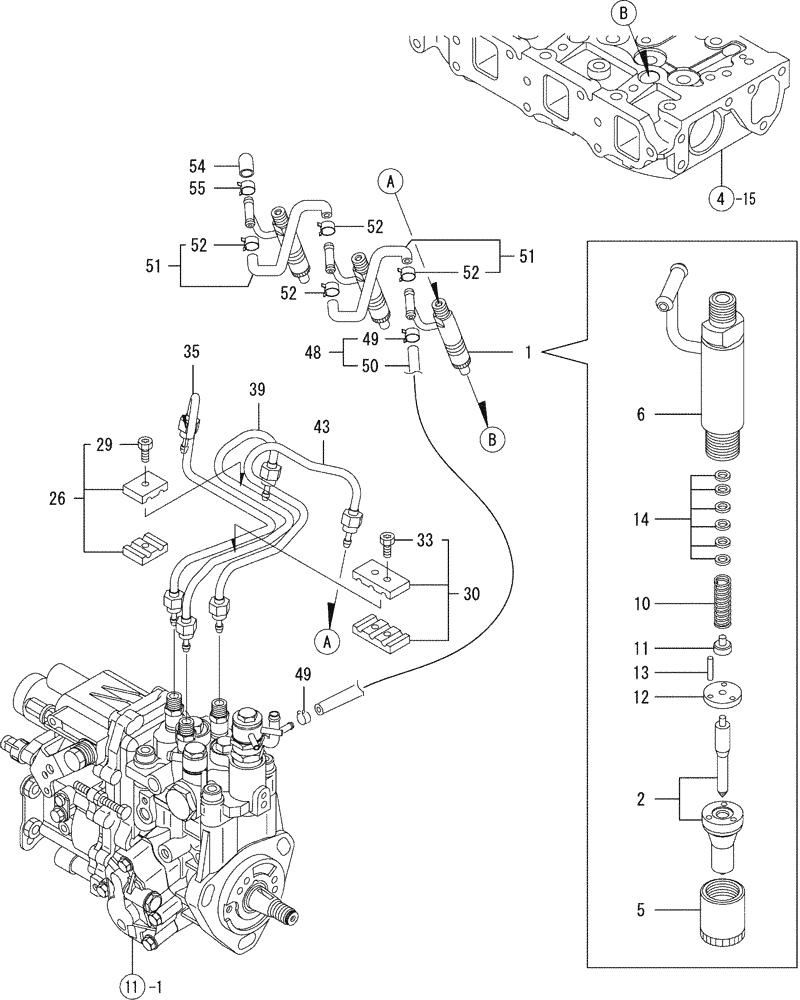

Запчасти Case CX27B (08-012) - FUEL INJECTION VALVE (10) - ENGINE

NSS

NOT SOLD SEPARAT

FUEL INJECTION VALVE

1шт.

1

VV72964653100

FUEL SYSTEM INJECTOR

FUEL INJECTOR (WCM)

3шт.

2

VV12964653000

NOZZLE

NOZZLE ASSY

3шт.

5

VV11425053080

NUT

NUT, NOZZLE CASE

3шт.

6

VV11980253100

HOLDER

HOLDER ASSY, NOZZLE

3шт.

10

VV11425053120

SPRING

SPRING, NOZZLE

3шт.

11

VV11425053130

SEAT

SEAT, NOZZLE SPRING

3шт.

12

VV11425053140

PLATE

PLATE, STOP

3шт.

13

VV11425053210

PIN

PIN

6шт.

14

VV11425053400

SHIM

SHIM PACK

3шт.

26

VV11930559120

RETAINER

RETAINER

1шт.

29

VV12915059131

BOLT

BOLT, M4 X 14, HEX. SCKT.

1шт.

30

VV12915059120

RETAINER

RETAINER, INJ. PIPE

1шт.

33

VV12915059131

BOLT

BOLT, M4 X 14, HEX. SCKT.

2шт.

35

VV11980259810

TUBE

PIPE ASSY, INJECTION

1шт.

39

VV11980259820

TUBE

PIPE ASSY, INJECTION

1шт.

43

VV11980259830

TUBE

PIPE ASSY, INJECTION

1шт.

48

VV11980259550

PIPE ASSY.

PIPE ASSY, RETURN

1шт.

49

VV12472259050

CLAMP

CLAMP 9

2шт.

50

VV11980259560

PIPE

PIPE, FUEL RETURN

1шт.

51

VV12948659551

PIPE

PIPE, FUEL RETURN

2шт.

52

VV12472259050

CLAMP

CLAMP 9

4шт.

54

VV11959359580

CAP

CAP

1шт.

55

VV12406077680

CLAMP

CLAMP 10

1шт.
