(08-010) - COOLING WATER SYSTEM

Запчасти Case CX27B (08-010) - COOLING WATER SYSTEM (10) - ENGINE

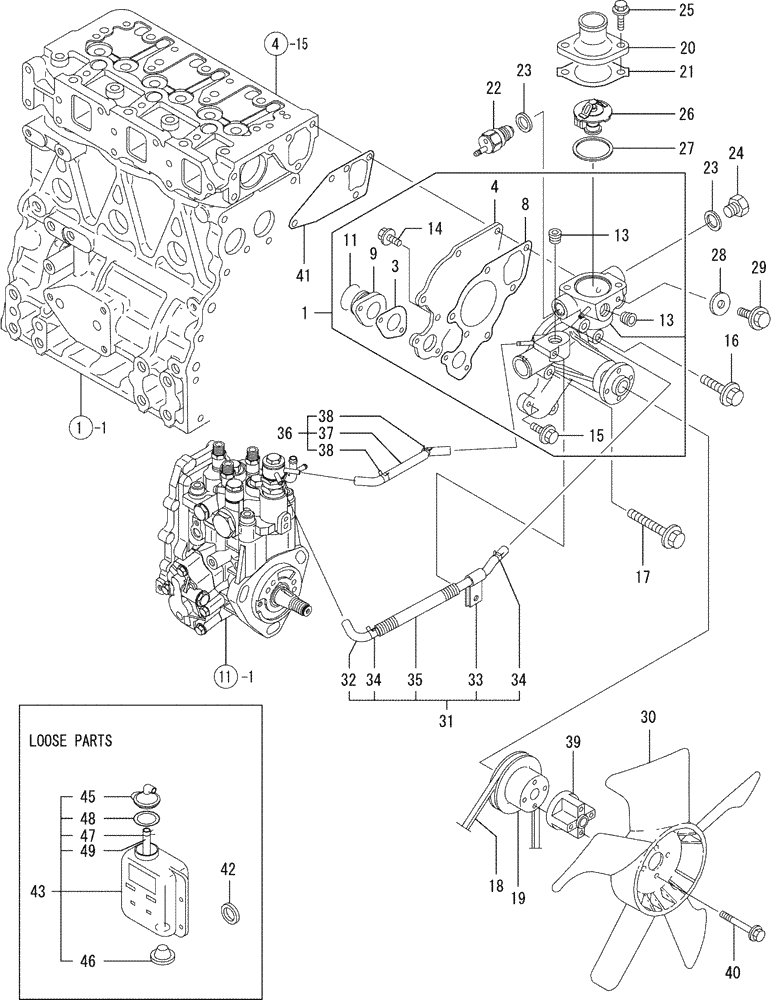

Схема запчастей Case CX27B - (08-010) - COOLING WATER SYSTEM (10) - ENGINE
11
30
17
45
1
31
32
26
19
39
20
21
47
43
3
29
37
49
27
22
40
46
36
16
41
34
9
13
28
33
8
24
42
15
23
35
14
4
38
38
48
18
23
25
34
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

COOLING WATER SYSTEM

1шт.

1

VV11980242000

WATER PUMP

PUMP ASSY, WATER

1шт.

3

VV11981042051

GASKET

GASKET, (NON-ASB.)

1шт.

4

VV11981042120

PLATE

PLATE

1шт.

8

VV11981042281

GASKET

GASKET, (NON-ASB.)

1шт.

9

VV11981042290

PIPE

PIPE, C.W. PUMP

1шт.

11

VV12915042320

O-RING

O-RING

1шт.

13

VV23876030000

PLUG

PLUG PT 3/8, SCREW

2шт.

14

VV26106060142

BOLT,M6 x 14mm

BOLT, M6 X 14 PLATED

2шт.

15

VV26106060202

BOLT,M6 x 20mm

BOLT, M6 X 20 PLATED

2шт.

16

VV26106080352

BOLT,M8 x 35mm

BOLT, M8 X 35 PLATED

1шт.

17

VV26106080552

BOLT,M8 x 55mm

BOLT, M8 X 55 PLATED

3шт.

18

VV12921142290

V-BELT

1шт.

19

VV12955642350

GROOVED PULLEY

V-PULLEY

1шт.

20

VV12935049530

COVER

COVER, THERMOSTAT

1шт.

21

VV12979549551

GASKET

(NON-ASBESTOS)

1шт.

22

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

THERMO (110 degree C)

1шт.

23

VV12446544950

GASKET

GASKET 16

2шт.

24

VV12145042450

PLUG,M16

PLUG M16

1шт.

25

VV26106080222

BOLT,M8 x 22mm

BOLT, M8 X 22 PLATED

2шт.

26

VV12915549801

THERMOSTAT

THERMOSTAT (71)

1шт.

27

VV12915049811

GASKET

(NON-ASBESTOS)

1шт.

28

VV23414080000

SEAL

GASKET 8, ROUND

1шт.

29

VV26106080122

BOLT,M8 x 12mm

BOLT, M8 X 12 PLATED

1шт.

30

VV11926544740

FAN

FAN D=310

1шт.

31

VV11980249610

PIPE ASSY.

PIPE ASSY, A MP2

1шт.

32

VV11980249711

PIPE ASSY.

PIPE ASSY, A MP2

1шт.

33

VV11980249730

CLAMP

CLAMP, CW-T

1шт.

34

VV12472259050

CLAMP

CLAMP 9

2шт.

35

VV11980259320

TUBE

TUBE, CORRUGATED

1шт.

36

VV11980249620

PIPE ASSY.

PIPE ASSY, B MP2

1шт.

37

VV11980249721

PIPE

PIPE, WATER B MP2

1шт.

38

VV12472259050

CLAMP

CLAMP 9

2шт.

39

VV17135344760

SPACER

SPACER

1шт.

40

VV26106060402

BOLT,M6 x 40mm

BOLT, M6 X 40 PLATED

4шт.

41

VV12948642050

GASKET

GASKET

1шт.

42

VV12915049360

PACKING

GASKET 10

1шт.

43

VV12146844510

TANK

SUB-TANK ASSY

1шт.

45

VV12145044531

CAP

CAP

1шт.

46

VV12146844540

PLUG

PLUG, SUB-TANK

1шт.

47

VV12445044560

CLAMP

CLAMP

1шт.

48

VV12147044581

GASKET

GASKET

1шт.

49

VV23065070130

PIPE

PIPE, 7 X 130

1шт.
