(08-009) - LUB. OIL SYSTEM

Запчасти Case CX27B (08-009) - LUB. OIL SYSTEM (10) - ENGINE

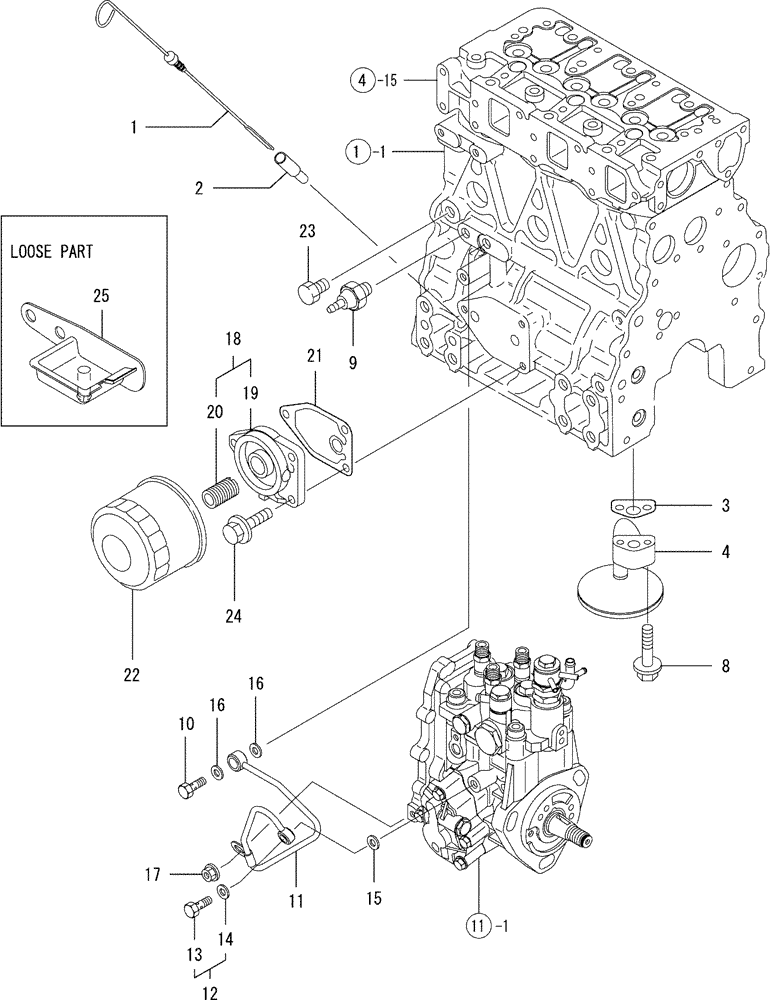

Схема запчастей Case CX27B - (08-009) - LUB. OIL SYSTEM (10) - ENGINE
23
12
20
8
9
2
16
11
18
21
25
16
4
22
17
10
24
15
19
1
13
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

LUB. OIL SYSTEM

1шт.

1

VV11980234801

DIPSTICK

DIPSTICK, LUB. OIL

1шт.

2

VV12152034810

GUIDE

GUIDE, DIPSTICK

1шт.

3

VV12915035041

GASKET

GASKET, (NON-ASB.)

1шт.

4

VV11981035300

PIPE ASSY.

PIPE ASSY, OIL INLET

1шт.

8

VV26106080352

BOLT,M8 x 35mm

BOLT, M8 X 35 PLATED

2шт.

9

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(0.5KG) L.O.

1шт.

10

VV12416039140

BOLT

BOLT 10, PIPE JOINT

1шт.

11

VV11980239450

PIPE ASSY.

PIPE ASSY, LUB. OIL

1шт.

12

VV12900559830

BOLT

BOLT ASSY, JOINT

1шт.

13

VV23857030000

BOLT

JOINT BOLT 3

1шт.

14

VV22190080002

SEAL

SEAL WASHER 8S

1шт.

15

VV22190080002

SEAL

SEAL WASHER 8S

1шт.

16

VV22190100002

SEAL

SEAL WASHER 10S

2шт.

17

VV26366060002

NUT,M6

NUT M6

1шт.

18

VV11980235100

BRACKET

BRACKET ASSY, FILTER

1шт.

19

VV11980235110

BRACKET

BRACKET, FILTER

1шт.

20

VV12910035140

STUD

STUD

1шт.

21

VV12915035111

GASKET

GASKET, (NON-ASB.)

1шт.

22

VV12915035152

ENGINE OIL FILTER

FILTER, 80 X 80L

1шт.

23

VV17105649120

PLUG

PLUG, DRAIN

1шт.

24

VV26106080202

BOLT,M8 x 20mm

BOLT M8 X 20 PLATED

3шт.

25

VV11994035800

PAN

PAN (L.O.)

1шт.
