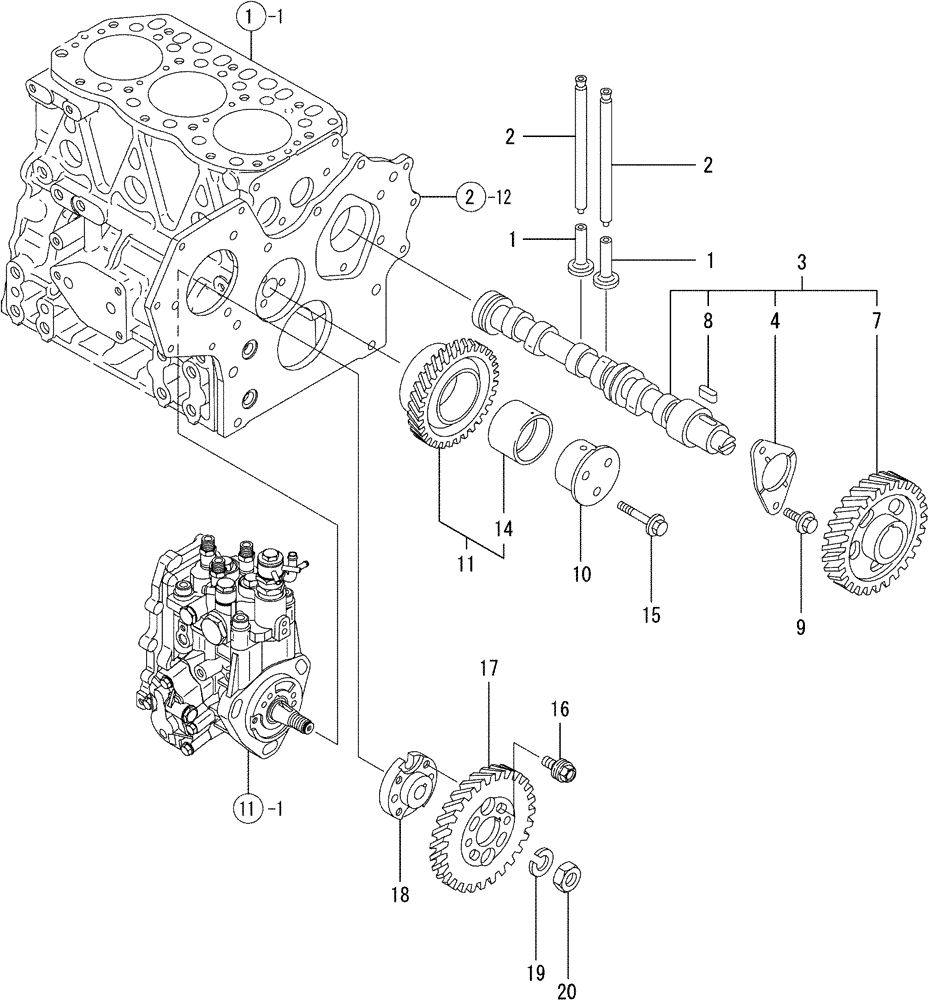

Запчасти Case CX27B (08-007) - CAMSHAFT AND DRIVING GEAR (10) - ENGINE

NSS

NOT SOLD SEPARAT

CAMSHAFT & DRIVING GEAR

1шт.

1

VV12915014200

TAPPET

TAPPET

6шт.

2

VV11981014400

PUSH ROD

ROD, PUSH

6шт.

3

VV11980214580

CAMSHAFT

CAMSHAFT ASSY

1шт.

4

VV12915002450

METAL LINER

METAL, THRUST (CAM)

1шт.

7

VV12915014101

GEAR SET

GEAR, CAMSHAFT

1шт.

8

VV22512070140

KEY,M7 x 14mm

KEY, 7 X 14

1шт.

9

VV26106080142

BOLT,M8 x 14mm

BOLT, M8 X 14 PLATED

2шт.

10

VV11980225051

SHAFT

SHAFT, IDLE GEAR

1шт.

11

VV11980225100

GEAR

GEAR ASSY, IDLE

1шт.

14

VV11980225070

BUSHING

BUSH, IDLE GEAR

1шт.

REPAIR PART

1шт.

15

VV26106080402

BOLT,M8 x 40mm

BOLT, M8 X 40 PLATED

3шт.

16

VV12915025301

BOLT

BOLT FI-P

4шт.

17

VV11980225901

GEAR

GEAR, PUMP

1шт.

18

VV15855251151

FLANGE

FLANGE

1шт.

19

VV22217140000

SPRING WASHER

SPRING WASHER 14

1шт.

20

VV26776140002

LOCK NUT,M14

LOCK NUT M14 PLATED

1шт.
