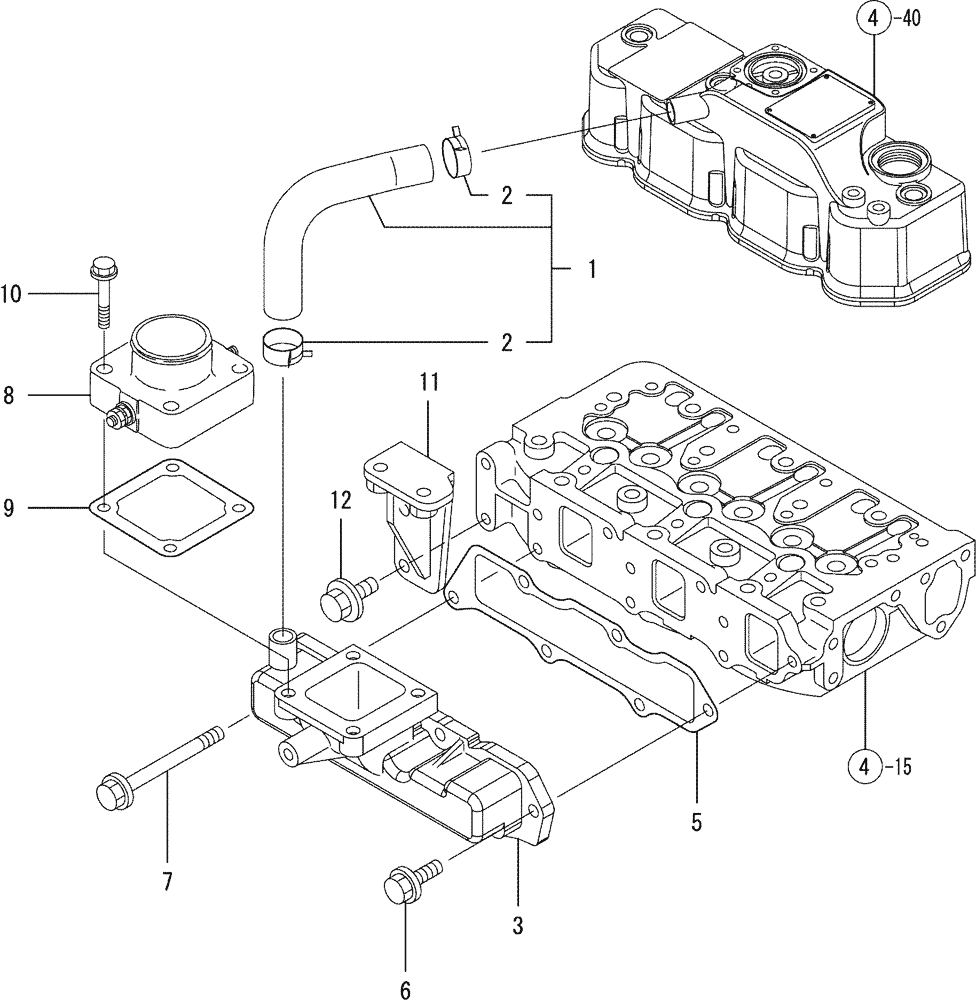

Запчасти Case CX27B (08-005) - SUCTION MANIFOLD (10) - ENGINE

NSS

NOT SOLD SEPARAT

SUCTION MANIFOLD

1шт.

1

VV12900503080

PIPE

PIPE, BREATHER

1шт.

2

VV12941003990

CLAMP

CLAMP 24

2шт.

3

VV11980212120

INLET MANIFOLD

MANIFOLD, INTAKE

1шт.

5

VV11981312110

GASKET

GASKET, INT. MANIFOLD

1шт.

6

VV26106080202

BOLT,M8 x 20mm

BOLT, M8 X 20 PLATED

4шт.

7

VV26106080802

BOLT,M8 x 80mm

BOLT, M8 X 80 PLATED

2шт.

8

VV12912077501

HEATER

HEATER, AIR

1шт.

9

VV12915077511

PACKAGE,SERVICE

GASKET, (NON-ASB.)

1шт.

10

VV26106080352

BOLT,M8 x 35mm

BOLT, M8 X 35 PLATED

4шт.

11

VV11980255620

BRACKET

BRACKET, FO FILTER

1шт.

12

VV26106080162

BOLT,M8 x 16mm

BOLT, M8 X 16 PLATED

2шт.
