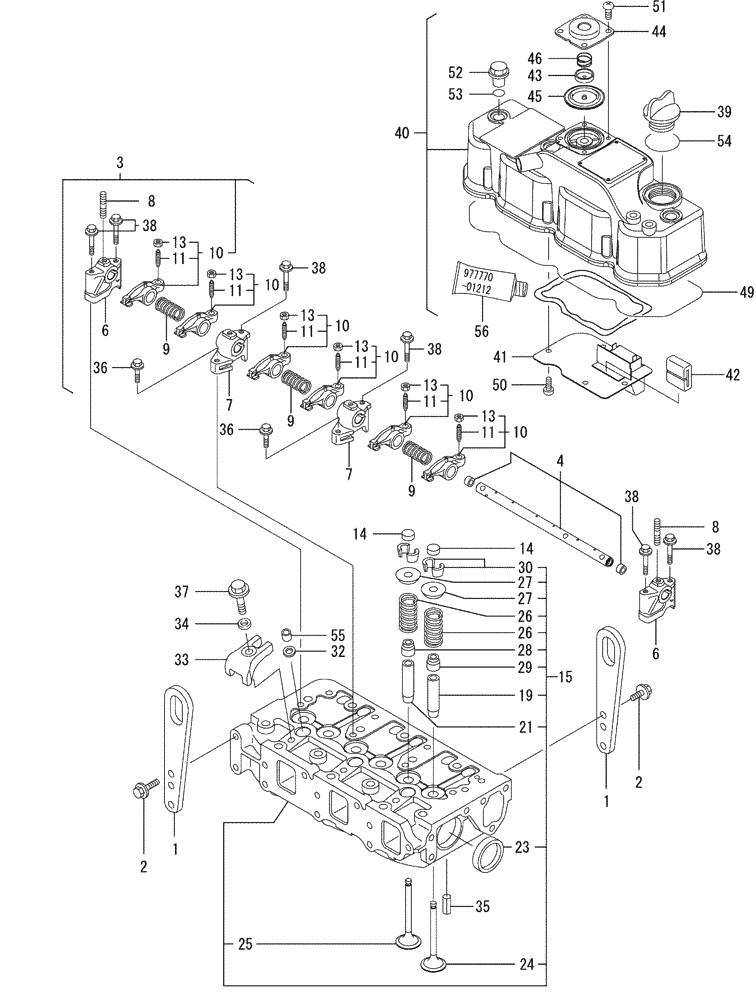

Запчасти Case CX27B (08-004) - CYLINDER HEAD AND BONNET (10) - ENGINE

NSS

NOT SOLD SEPARAT

CYLINDER HEAD & BONNET

1шт.

1

VV12990007900

GRAIN LIFTER

LIFTER, ENGINE

2шт.

2

VV26106080142

BOLT,M8 x 14mm

BOLT, M8 X 14 PLATED

4шт.

3

VV11980211241

SHAFT ASSY.

SHAFT ASSY, ROCKER

1шт.

4

VV11980211251

SHAFT

SHAFT, ROCKER ARM

1шт.

6

VV11980211260

SUPPORT

SUPPORT, ROCKER ARM

2шт.

7

VV11980211270

SUPPORT

SUPPORT, ROCKER ARM

2шт.

8

VV11980211280

STUD

STUD

3шт.

9

VV12915011280

SPRING

SPRING

3шт.

10

VV11980211650

ROCKER ARM

ARM ASSY, ROCKER

6шт.

11

VV12915011230

SCREW

SCREW, VALVE

6шт.

13

VV12915011750

NUT

NUT M8 X P1.0

6шт.

14

VV10421111370

CAP

CAP, VALVE

6шт.

15

VV11980211700

CYLINDER HEAD

HEAD ASSY, CYLINDER

1шт.

19

VV12406011800

VALVE GUIDE

GUIDE, VALVE

3шт.

21

VV11980211810

VALVE GUIDE

GUIDE, VALVE

3шт.

23

VV27241400000

PLUG

PLUG 40

2шт.

24

VV11980211100

STD INLET VALVE

STD ENGINE INLET VALVE VALVE, INTAKE

3шт.

25

VV11980211110

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE, EXHAUST

3шт.

26

VV11981011120

SPRING

SPRING, VALVE

6шт.

27

VV10421111180

RETAINER

RETAINER, SPRING

6шт.

28

VV12416011340

SEAL

SEAL, VALVE STEM

3шт.

29

VV12495011340

SEAL

SEAL, VALVE STEM

3шт.

30

VV27310070001

ROCKER ARM COTTER

COTTER ASSY

6шт.

32

VV11962511880

SEAL

SEAT, NOZZLE

3шт.

33

VV11980211900

RETAINER

RETAINER, NOZZLE

3шт.

34

VV12027054410

WASHER

WASHER

3шт.

35

VV22351060012

SPRING,6 x 12mm

SPRING PIN, 6 X 12

2шт.

36

VV26106080252

BOLT,M8 x 25mm

BOLT, M8 X 25 PLATED

2шт.

37

VV26106080452

BOLT,M8 x 45mm

BOLT, M8 X 45 PLATED

3шт.

38

VV26106080502

BOLT,M8 x 50mm

BOLT, M8 X 50 PLATED

6шт.

39

VV12416001751

CAP

COVER, FILLER

1шт.

40

VV11980211350

COVER

BONNET ASSY, HEAD

1шт.

41

VV11980203010

PLATE

PLATE, BAFFLE

1шт.

42

VV12915003070

BAFFLE

BAFFLE, BREATHER

1шт.

43

VV11980203110

PLATE

PLATE, DIAPHRAGM

1шт.

44

VV11980203120

COVER ASSY

COVER, DIAPHRAGM

1шт.

45

VV11980203130

DIAPHRAGM

DIAPHRAGM

1шт.

46

VV11980203140

SPRING

SPRING, DIAPHRAGM

1шт.

49

VV11980211310

GASKET

GASKET, BONNET

1шт.

50

VV22857500100

SCREW,M5 x 10mm

SCREW, 5 X 10, TAPPING

4шт.

51

VV22857500100

SCREW,M5 x 10mm

SCREW, 5 X 10, TAPPING

4шт.

52

VV12416011360

KNOB

KNOB

3шт.

53

VV24311000120

O-RING

O-RING 1A P 12.0

3шт.

54

VV24311000320

O-RING

O-RING 1A P-32.0

1шт.

55

VV11980211870

PROTECTOR

PROTECTOR, NOZZLE

3шт.

56

VV97777001212

GASKET

GASKET, LIQUID

1шт.

OPTIONAL PART

1шт.
