(08-003) - FLYWHEEL HOUSING AND OIL SUMP

Запчасти Case CX27B (08-003) - FLYWHEEL HOUSING AND OIL SUMP (10) - ENGINE

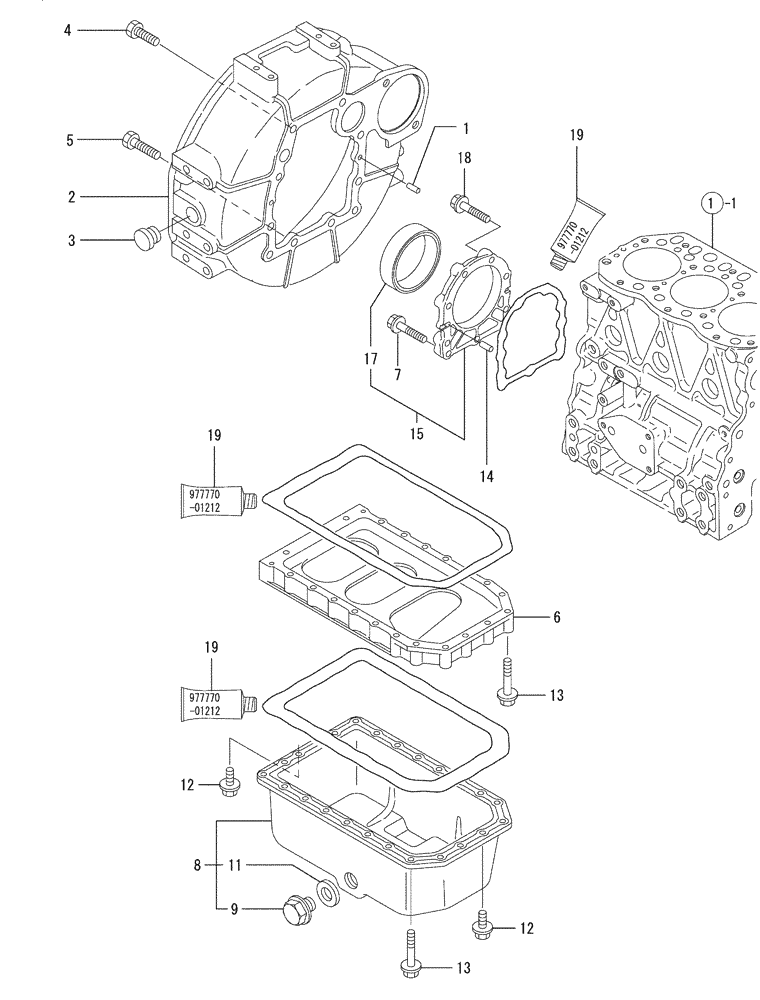

Схема запчастей Case CX27B - (08-003) - FLYWHEEL HOUSING AND OIL SUMP (10) - ENGINE
7
3
1
9
12
14
19
13
19
19
1
11
2
4
17
12
13
6
5
18
15
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12910001580

PIN,M8 x 16mm

PARALLEL PIN 8 X 16

2шт.

2

VV12961201600

HOUSING

HOUSING, FLYWHEEL

1шт.

3

VV11962001750

CAP

CAP, FLYWHEEL COVER

1шт.

4

VV26206100252

BOLT,M10 x 25mm

BOLT, M10 X 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

BOLT, M10 X 30

4шт.

6

VV11981001730

SPACER

SPACER, L.O. SUMP

1шт.

7

VV26106080352

BOLT,M8 x 35mm

BOLT, M8 X 35 PLATED

3шт.

8

VV11981001770

SUMP

SUMP ASSY, OIL

1шт.

9

VV11964001640

DRAIN PLUG,M22

DRAIN PLUG M22

1шт.

11

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

SEAL WASHER 22S

1шт.

12

VV26106080162

BOLT,M8 x 16mm

BOLT, M8 X 16 PLATED

6шт.

13

VV26106080452

BOLT,M8 x 45mm

BOLT, M8 X 45 PLATED

22шт.

14

VV12910001580

PIN,M8 x 16mm

PARALLEL PIN, 8 X 16

2шт.

15

VV12910001640

BOX

CASE ASSY, OIL SEAL

1шт.

17

VV12979501780

OIL SEAL

SEAL OIL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

BOLT, M8 X 30, COLLAR HD

6шт.

19

VV97777001212

GASKET

GASKET, LIQUID

1шт.

OPTIONAL PART

1шт.
