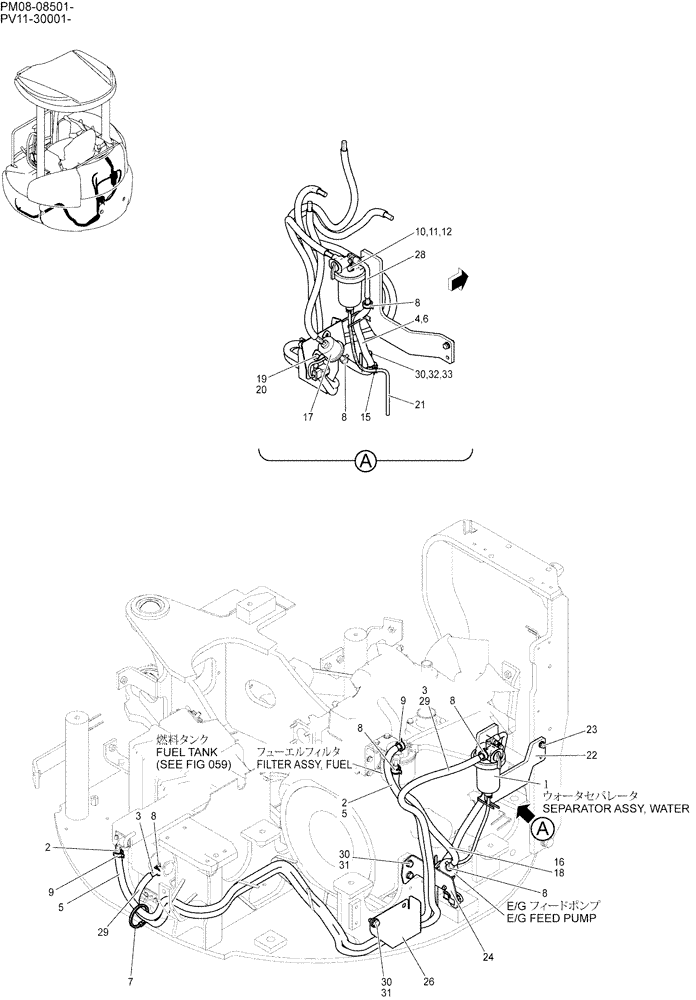

Запчасти Case CX27B (01-011) - FUEL LINES (10) - ENGINE

FUEL LINES (PM21P00005F1)

1шт.

1

PW02P01046P1

SEPARATOR

1шт.

2

PA21P01005DN

HOSE

1шт.

3

PH21P01003DL

HOSE

1шт.

4

PH21P01003DN

HOSE ASSY.

HOSE

1шт.

5

PW21P01003DN

TUBE

1шт.

6

PU13E01002DC

TUBE

1шт.

7

PY01P01043D3

CABLE TIE,188mm L

1шт.

8

PH05P01088D5

CLIP

6шт.

9

PH05P01088D6

CLIP

2шт.

10

ZS18C08070

SCREW,Hex, M8 x 70mm

1шт.

11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

12

ZW26X08000

LOCK WASHER

1шт.

15

PA21P01003D2

CLIP

1шт.

16

PW21P01003DT

TUBE

1шт.

17

PW22P00001P1

FUEL PUMP

1шт.

18

PH21P01003DM

HOSE

1шт.

19

ZS18C06016

SCREW,Hex, M6 x 16mm

2шт.

20

ZW16X06000

WASHER

2шт.

21

HX11Y04050DX

HOSE,6mm ID x 500mm L

1шт.

22

PM21P01011P1

BRACKET

1шт.

23

ZM22C08025

BOLT

2шт.

24

PM21P01013P1

BRACKET

1шт.

26

PW21P01009P1

COVER

1шт.

28

PM21P01010P1

HOSE ASSY.

1шт.

29

PW21P01003DS

TUBE

1шт.

30

ZW16H10000

WASHER

5шт.

31

ZS18C10020

SCREW,Hex, M10 x 20mm

4шт.

32

ZS18C10016

SCREW,Hex, M10 x 16mm

1шт.

33

2432R233D3

CLIP

1шт.
