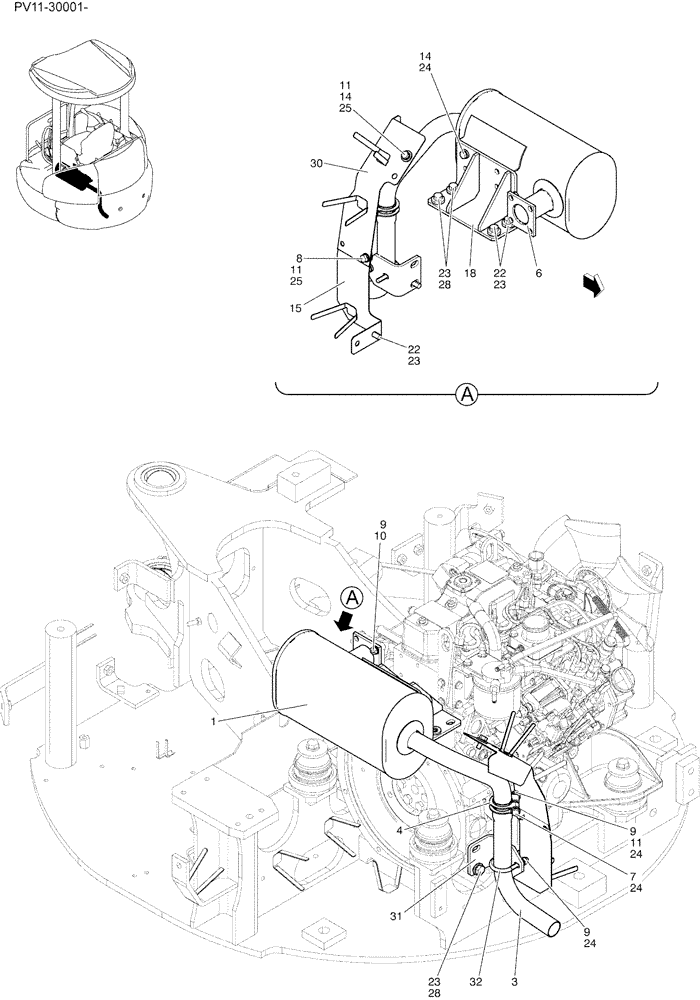

Запчасти Case CX27B (01-010) - MUFFLER ASSY (10) - ENGINE

MUFFLER ASSY (PV12P00003F1)

1шт.

1

PM12P00018P1

MUFFLER

1шт.

3

PV12P01013P1

EXHAUST SYSTEM PIPE

1шт.

4

PW12P01031P1

CLAMP

1шт.

6

PW12P01043P1

GASKET

1шт.

7

ZS18C08060

SCREW,Hex, M8 x 60mm

1шт.

8

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

9

ZN18C08007

NUT

9шт.

10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

11

ZW26X08000

LOCK WASHER

5шт.

14

ZS18C08020

SCREW,Hex, M8 x 20mm

6шт.

15

PM12P01054P1

COVER

1шт.

18

PM12P01036P1

BRACKET

1шт.

22

ZS18C10020

SCREW,Hex, M10 x 20mm

4шт.

23

ZW16H10000

WASHER

8шт.

24

ZW16H08000

WASHER

8шт.

25

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

4шт.

28

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

30

PM12P01056P1

COVER

1шт.

31

PM12P01053P1

PLATE

1шт.

32

2420T2948D18

U-BOLT

1шт.
