(06-015) - NAME PLATE INSTAL

Запчасти Case CX27B (06-015) - NAME PLATE INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

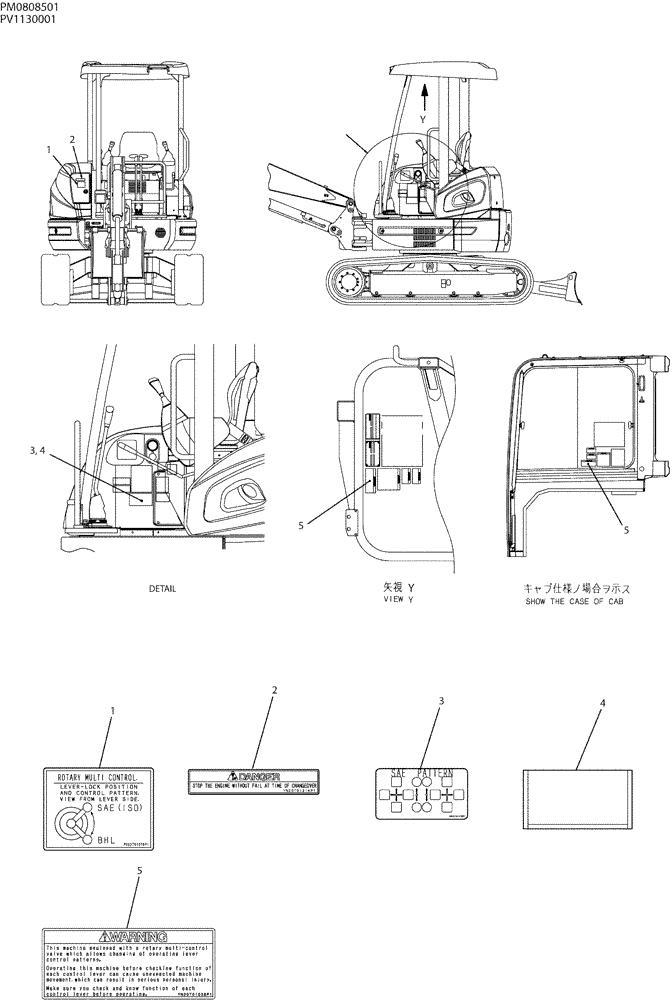

Схема запчастей Case CX27B - (06-015) - NAME PLATE INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
4
5
1
2
3
3
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW22T00172F1

LABEL

NAME PLATE INSTAL

1шт.

1

PW20T01133P1

LABEL

1шт.

2

YN20T01214P1

LABEL

Danger, Stop the Engine without fail at time of Changeover

1шт.

3

YN20T01476P1

LABEL

PLATE, INSTRUCTION SAE Pattern

1шт.

4

YN20T01475P1

LABEL

HOLDER

1шт.

5

YN20T01039P1

WARNING DECAL

Warning, machine equipped with a rotary multi-control valve

1шт.

Выбрано товаров: 6
