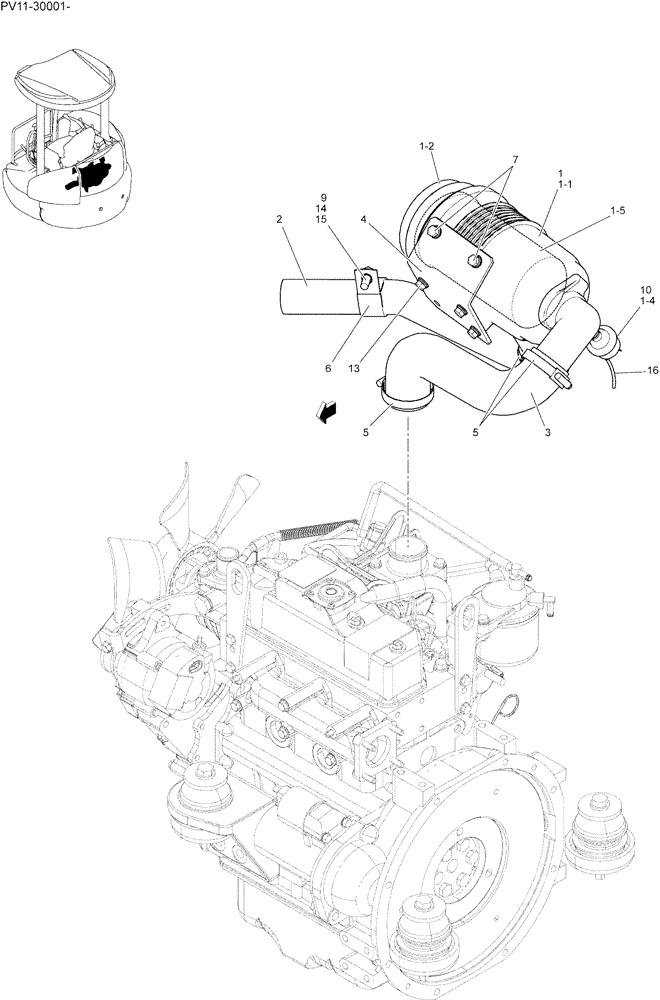

Запчасти Case CX27B (01-008) - CLEANER ASSY, AIR (10) - ENGINE

CLEANER ASSY, AIR (PM11P00014F1)

1шт.

1

PM11P00012F1

AIR CLEANER

1шт.

1-1

PM11P00009S001

BODY

1шт.

1-2

PW11P00009S002

COVER ASSY

1шт.

1-4

PW11P00010S004

INDICATOR

1шт.

1-5

PW11P00012S005

AIR FILTER

ELEMENT, FILTER

1шт.

2

PM11P01051P1

HOSE

1шт.

3

PM11P01045P1

HOSE

1шт.

4

PM11P01052P1

BRACKET

1шт.

5

ZC16X05800

CLIP

3шт.

6

ZC46X46014

CLIP

1шт.

7

PA03M01093D2

BOLT

2шт.

9

ZS18C10025

SCREW,Hex, M10 x 25mm

1шт.

10

PW11P00010S004

INDICATOR

1шт.

13

ZM22C08016

BOLT

4шт.

14

ZW16H10000

WASHER

1шт.

15

ZW26X10000

LOCK WASHER

1шт.

16

HX11Y03010DY

HOSE

1шт.
