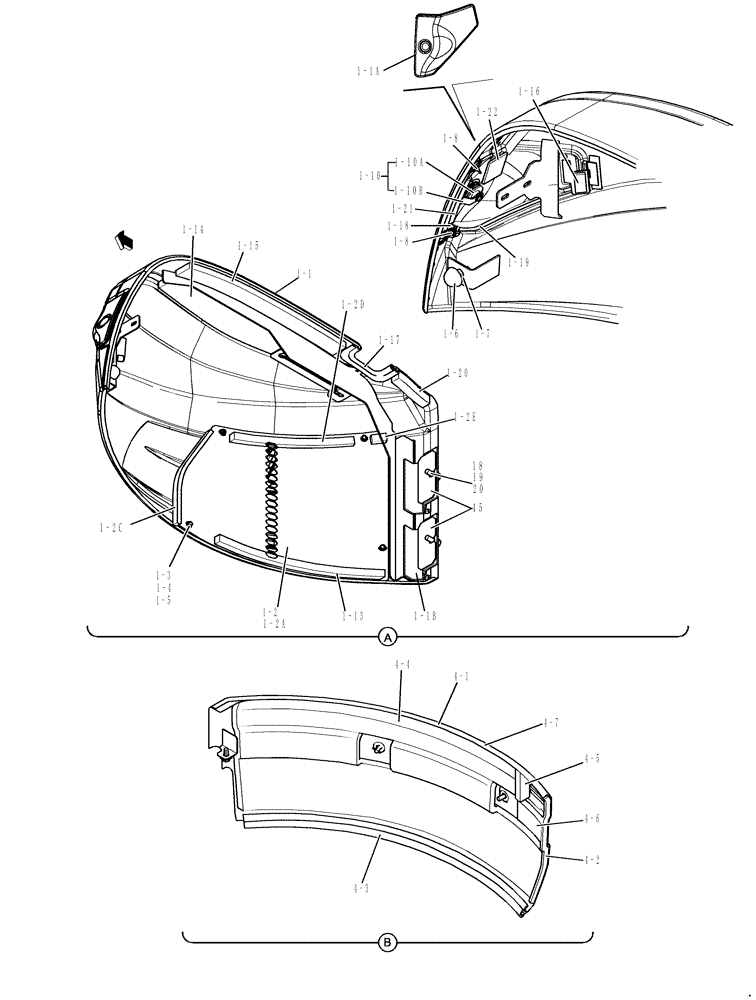

Запчасти Case CX27B (01-066) - GUARD INSTAL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1-1

PM21C01441P1

COVER

COVER

1шт.

1-1a

PM21C01419P1

COVER

1шт.

1-1b

PM21C01493P2

HINGE

2шт.

1-2

PM21C01588F1

GUARD ASSY.

GUARD ASSY

1шт.

1-2a

PM21C01582P1

GUARD

GUARD

1шт.

1-2c

PM21C01378D2

RUBBER

1шт.

1-2d

PM21C01378D3

RUBBER

1шт.

1-2e

PM21C01378D4

RUBBER

1шт.

1-3

ZN18C06005

NUT

4шт.

1-4

ZW26X06000

LOCK WASHER

4шт.

1-5

YT21P01001P1

WASHER

4шт.

1-6

YN21C01321P1

STOP

STOPPER

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01253P1

RUBBER

2шт.

1-10

PM21C01564F1

LOCK

1шт.

1-10a

YR22C01025P2

LOCK

1шт.

1-10b

PM21C01562P2

PLATE

1шт.

1-13

PM21C01378D1

RUBBER

1шт.

1-14

PM21C01488P1

FOAM INSULATION

1шт.

1-15

PM21C01489P1

FOAM INSULATION

1шт.

1-16

PA33H01057P1

RUBBER

1шт.

1-17

YT21C01163DE

INSULATING PANEL

1шт.

1-18

PM21C01528P1

RUBBER

1шт.

1-19

PM21C01529P1

RUBBER

1шт.

1-20

PM21C01530P2

FOAM INSULATION

INSULATION

1шт.

1-21

PE21C01135D7

TRIM

TRIM

1шт.

1-22

PM21C01574P1

RUBBER WEATHERSTRIP

RUBBER

1шт.

4-1

PM21C01590P1

COVER

COVER

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

2427P1836D8

WEATHERSTRIP

1шт.

4-4

PM21C01491P1

FOAM INSULATION

1шт.

4-5

PM21C01394P1

FOAM INSULATION

1шт.

4-6

PM21C01395P1

FOAM INSULATION

1шт.

4-7

PE21C01135D6

PANEL

1шт.

18

ZS18C12030

SCREW,Hex, M12 x 30mm

2шт.

19

ZW16H12000

WASHER

2шт.

20

ZW26X12000

LOCK WASHER

2шт.

45

PM21C01507P1

SHIM

2шт.
