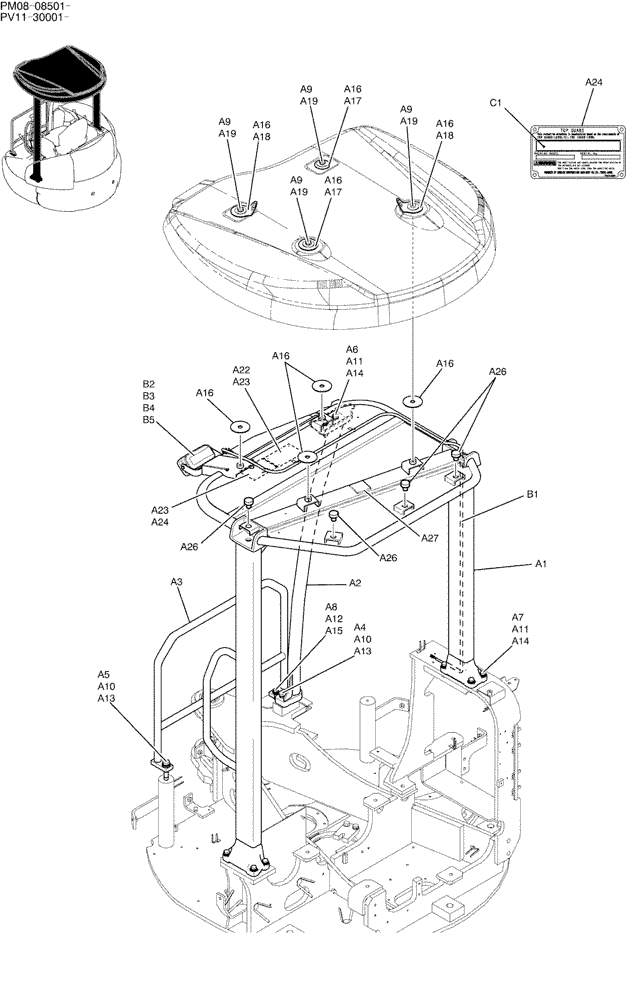

Запчасти Case CX27B (01-053) - CANOPY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

CANOPY ASSY (PW06C00036F1)

1шт.

a1

PW06C01174P1

SUPPORT

SUPPORT

1шт.

a2

PW06C01126P1

SUPPORT

SUPPORT

1шт.

a3

PW41C00017P1

HANDRAIL

HANDRAIL

1шт.

a4

ZS18C16065

SCREW,Hex, M16 x 65mm

1шт.

a5

ZS18C16100

SCREW,Hex, M16 x 100mm

1шт.

a6

ZS18C12035

SCREW,Hex, M12 x 35mm

2шт.

a7

ZS18C12055

SCREW,Hex, M12 x 55mm

8шт.

a8

ZS18C10040

SCREW,Hex, M10 x 40mm

1шт.

a9

ZS18C12030

SCREW,Hex, M12 x 30mm

4шт.

a10

ZW26X16000

LOCK WASHER

2шт.

a11

ZW26X12000

LOCK WASHER

10шт.

a12

ZW26X10000

LOCK WASHER

1шт.

a13

ZW16H16000

WASHER

2шт.

a14

ZW16H12000

WASHER

10шт.

a15

ZW16H10000

WASHER

1шт.

a16

PM06C01096P1

RUBBER

8шт.

a17

PM06C01042P1

WASHER

2шт.

a18

PW06C01088P1

PLATE

2шт.

a19

2418T22593

WASHER

4шт.

a22

PW20T01079P1

PLATE

1шт.

a23

PB06C01093D1

RIVET

8шт.

a24

PV20T01018P1

IDENTITY PLATE

1шт.

a26

2420Z1340D1

PLUG

4шт.

a27

PM03M01339P1

RUBBER

1шт.

PW80E00006F1

LIGHT

INSTAL

1шт.

b1

PW11E01026D4

HARNESS

1шт.

b2

PW80S00003F1

LIGHT ASSY.

(SEE FIG. 01-057)

1шт.

b3

ZN17F12007

NUT

1шт.

b4

ZW26X12000

LOCK WASHER

1шт.

b5

ZW16X12000

WASHER

1шт.

PW22T00169F1

NAME PLATE INSTAL

1шт.

c1

PW20T01082P1

LABEL

1шт.
